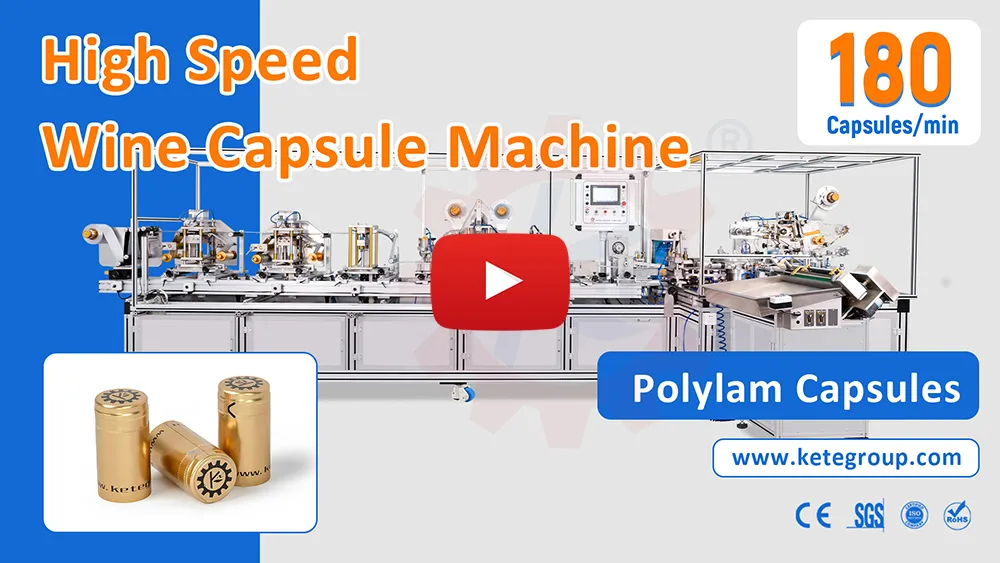

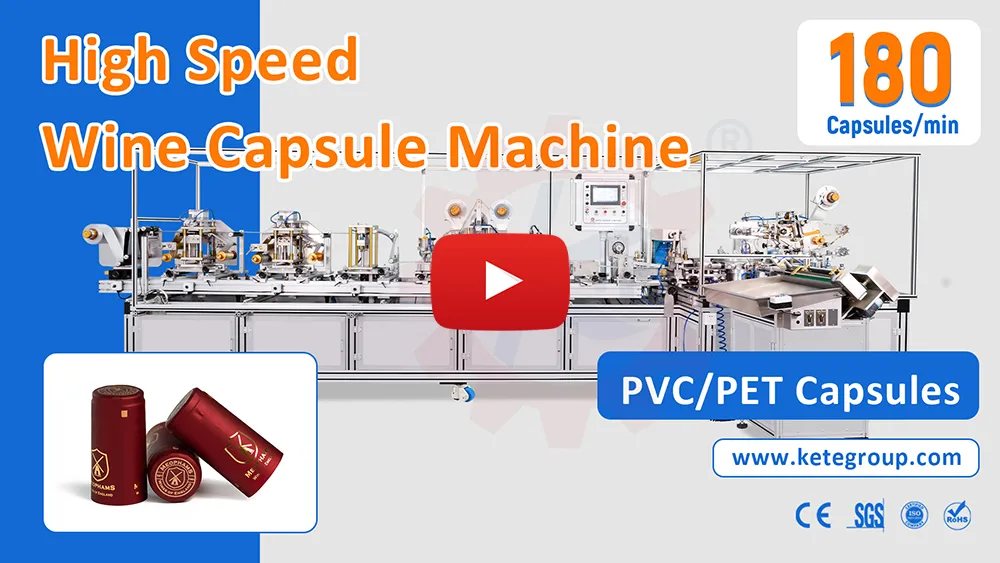

KTPC-D Series High Speed Wine Capsule Making Machine (Pro Model)

This Servo Drive System High Speed Wine Capsule Machine Uses the Shrinkable PVC Film, PET-G Film, and Polylaminate Material to Make Wine Capsules with Different Multifunction Functions. It Is Widely Used for Red Wine Bottles, White Wine Bottles, Yellow Wine Bottles, Beer Bottles, Condiment Bottles, and Olive Oil Bottle Security Sealing.

Features

Making PVC/PET/Polyalm Capsules
Skirt Vertical/Horizontal Perforation
Skirt Vertical/Horizontal Tear-off Tape
Skirt C Punch Function
Skirt 1/2/3 Color Hot Stamp
Top Disc 1/2 Colors Hot Stamp

Price Start From: US$ 138,000.00

Great! I’d like to share this machine:

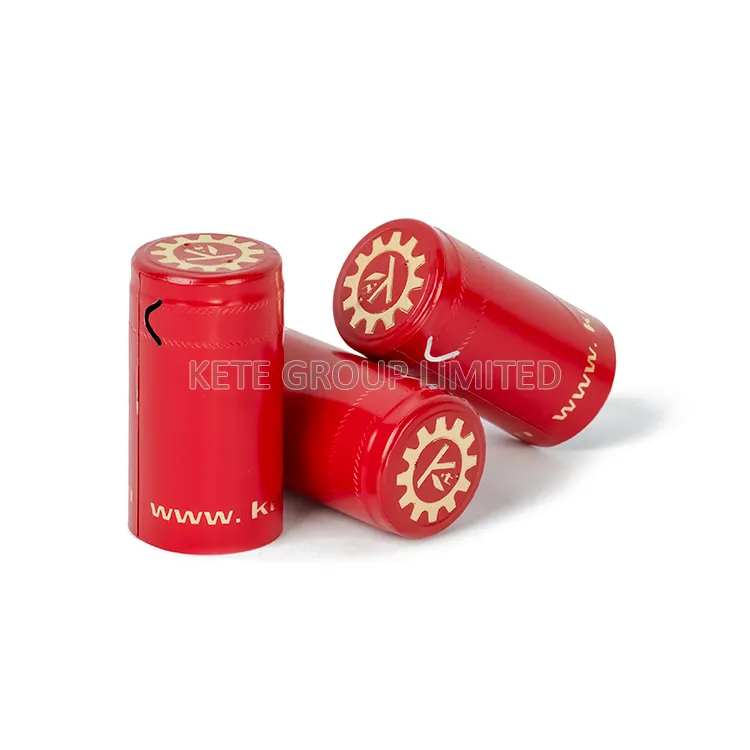

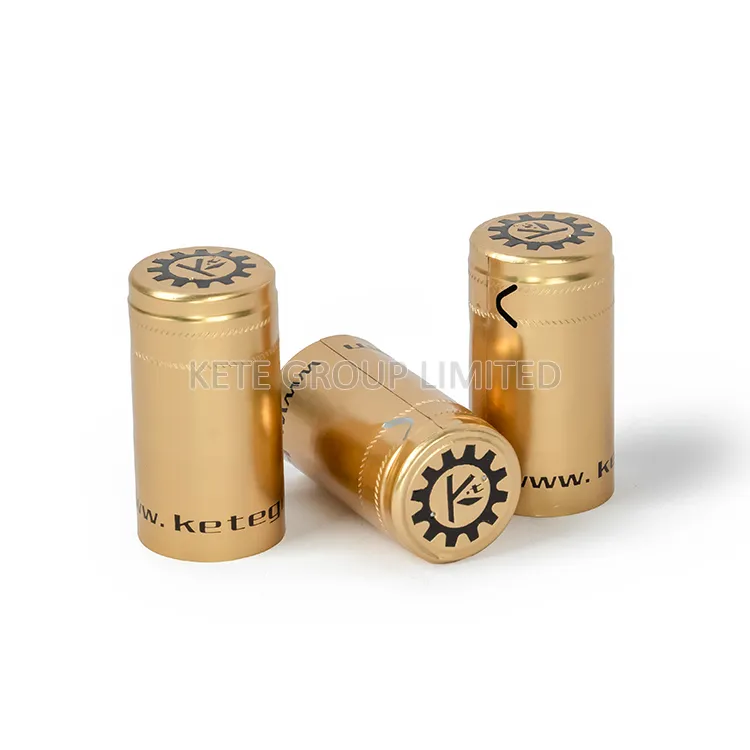

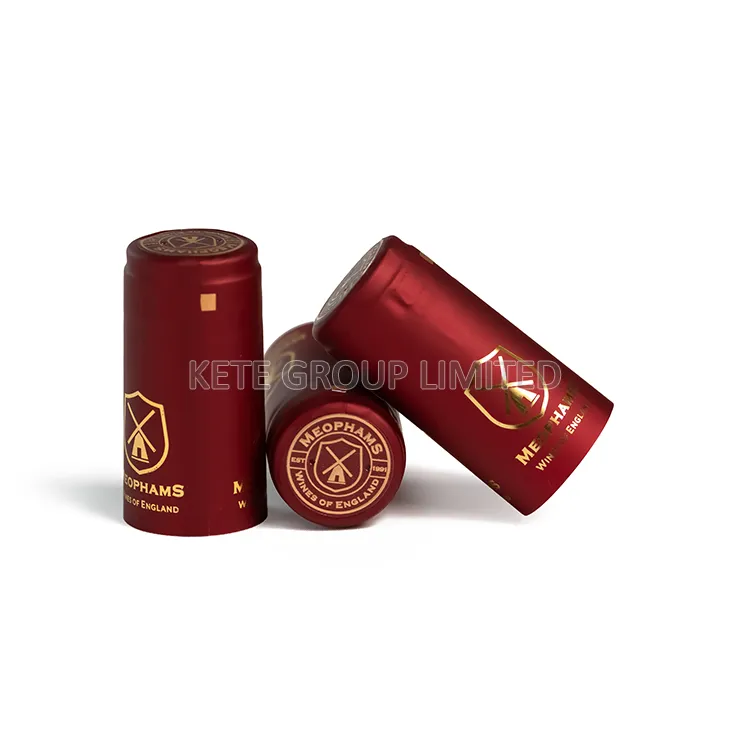

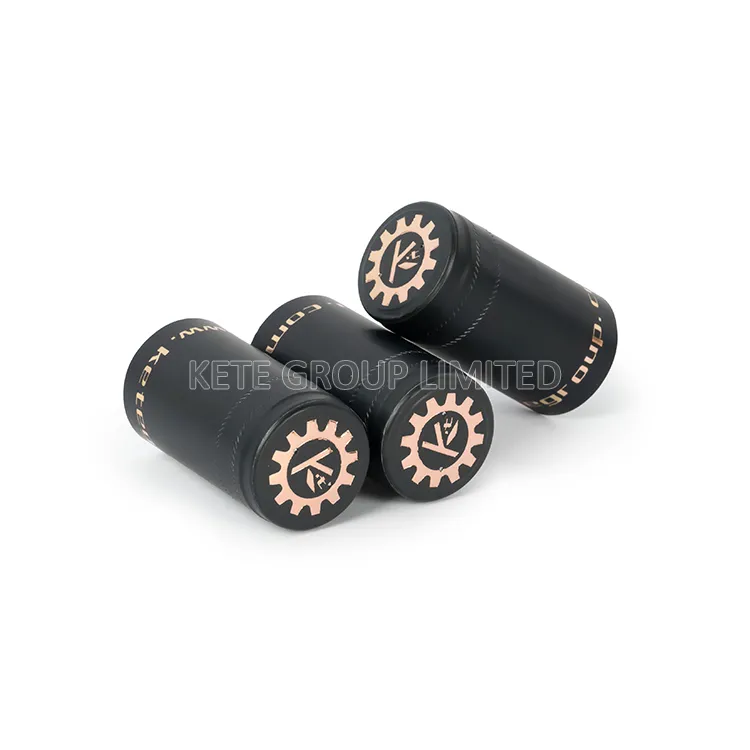

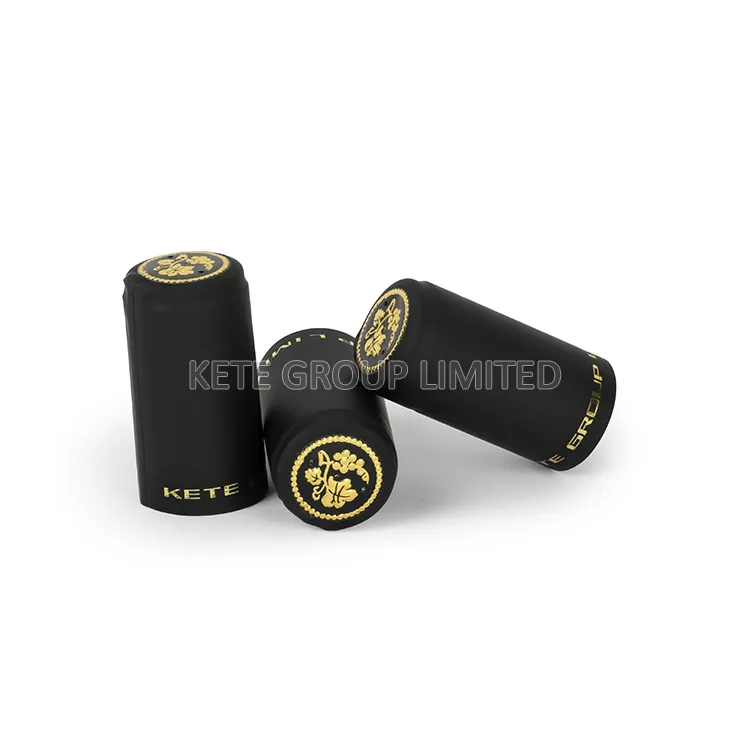

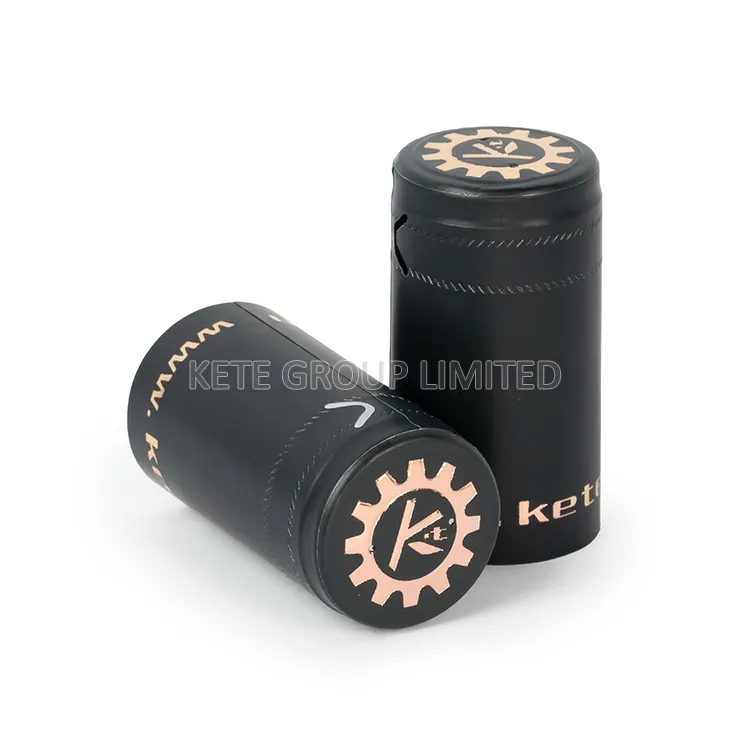

Machine Made Samples

Our Wine Capsule Machine can Make Heat Shrink Pvc Capsules, PET Capsules, Polylam Capsules, Sparkling Wine Capsules, Champagne Capsules,
Gas Cylinder Capsules, 5-gallon Bottle Capsules, Olive Oil Botle Capsules, Candy Bottle Capsules, Clean Sealing Capsules etc.

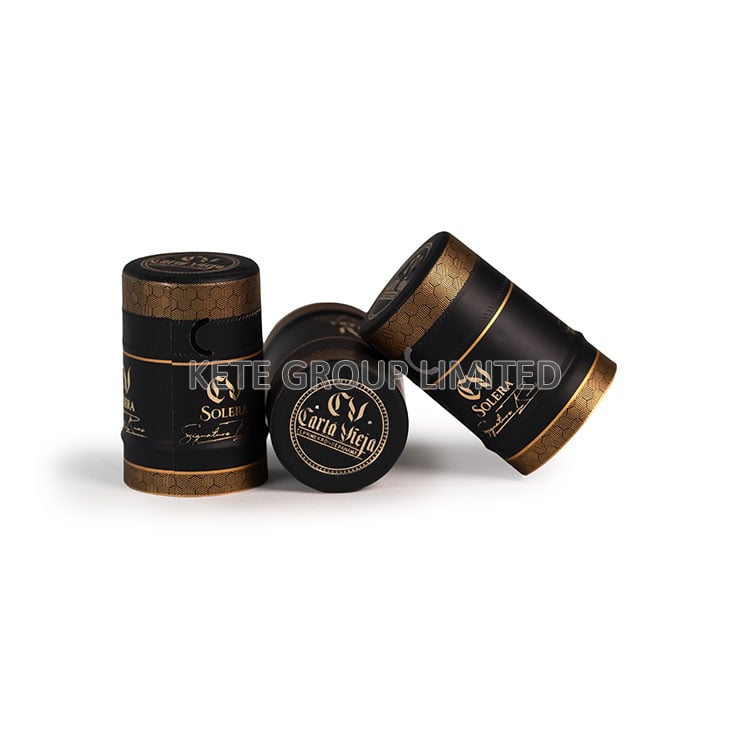

KETE MACHINE Wine Capsule Machine Large Polylam Capsules

KETE MACHINE Wine Capsule Machine Heat Shrink Capsules

KETE MACHINE Wine Capsule Machine Polylam Capsules

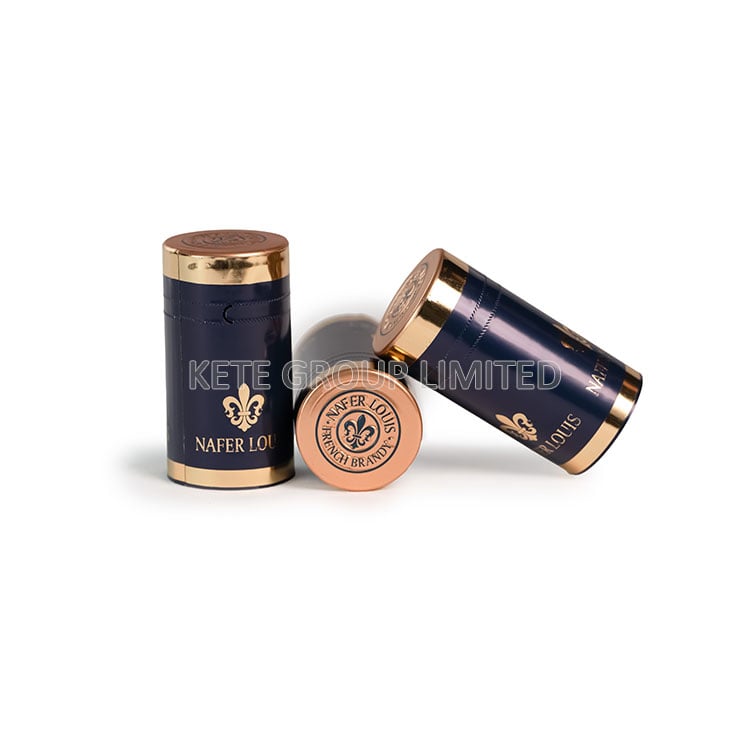

KETE MACHINE Wine Capsule Machine Spirits Wine Bottle Capsules

KETE MACHINE Wine Capsule Machine Wine Bottle Capsules

Let Our Experience Work For You

Machine Specifications

Model

KTPC-D

Capsules Height

35-80mm (1.4”-3.15”)

Raw Materials

Shrink PVC Film / PET-G Film/Polylaminate

Max. Mechanical Speed

200Capsules/min

Mandrels

Max. Capsule Making Speed

150-180Capsules/min

Max. Unwind Diameter

Φ600mm (23.6”)

Capsules Taper

1.5°-2.5°

Max. Unwind Width

146mm (5.75”)

Paper Core Inner Diameter

Φ76mm (3”)

PVC /PET-G Film Thickness

60-75mic (2.36”-2.95”)

Total Power

25kw

Polylaminate Material Thickness

100-120mic (3.94”-4.72”)

Machine Weight

4500kg

Capsules Top Diameter

Φ30mm-Φ44mm (1.18”-1.73”)

Machine Size (LWH)

6800x3000x1800mm

Capsules Bottom Diameter

Φ31mm-Φ45mm (1.22”-1.77”)

Power Support

5 Lines 3 Phase 220/380/440V 50/60HZ

Explore Machine Workflow & Function Station

Our Machine is Designed with a Series of High-Precision Stations, Each Station Performing a Specific Function. Explore How Each Station Contributes to the Full Production Process.
From Raw Material Entry to Finished Product Delivery, Every Station is Designed to Work Seamlessly Together for Maximum Productivity and Smart Control.

Wine Capsule Machine

Can Make PVC Capsules and Polylam Capsules

Unwind

With EPC System and Support Reverse Running

Perforation + C Punch

Make Perforation and C Punch on the Capsule Skirt for Easy Opening

Skirt Hot Stamp

Do Hot Stamp on the Capsule Skirt, Support 1 Color or 2 Colors

Tear Off Tape

Make Horizontal and Vertical Tear Off Tape on Skirt for Easy Opening

Touch Screen

Integrated Control of Machine, Including Functions, Parameters, Temperature, And Speed

Layout Drawing

Our Wine Capsule Machine Layout Size will be Different, Based on the Machine Functions of your Choice.

Download Our Latest Catalogue

Just Click Button Below to Download our PDF Catalogue

If You Want to Get More Details of KETE’s Wine Capsule Machines
and Their Data Sheet, Please Download Our Catalogue to Check,
and You Will Get Everything Clear.

Our Certificates

We Hold CE, RoHS, ISO, and Other Key Certifications to Ensure Our Machines Meet
Global Quality and Safety Standards.

Machine FAQ

Have Questions About Our Wine Capsule Machines? Find Quick Answers to The Most Common Topics, From Machine Features and Lead Times to Installation, Maintenance, Material, And Support. If You Don’t See Your Question Here, Feel Free To Contact us directly. We’re Happy to Help.

What Materials Can be Used in Our Wine Capsule Machine?

Our Wine Capsule Machine Can Use Heat Shrink PVC Film, PET Film and Polylam Material.

What is The Production Time of Our Wine Capsule Machine?

Our KTPC-C Wine Capsule Machine Needs 40-50 Working Days, KTPC-D High Speed Wine Capsule Machine Needs 70-80 Working Days, KTPC-E Sparkling Wine Capsule Machine Needs 120-150 Working Days.

Is the Same Wine Capsules Machine Making Different Capsules?

Yes, Customer Can Order Machine Only Make PVC Capsules or Only Make PET Capsules or Only Make Polylam Capsules, But Customer Also Can Order Same Machine Can Make PVC Capsules and Polylam Capsules. Even Make Aluminum Foil Capsules.

What is The Speed of Our Wine Capsules Machine?

We Have KTPC-C model Wine Capsule Machine, Speed of 120Capsules/min, and KTPC-D High Speed Wine Capsules Machine, Speed of 180Capsules/min, and KTPC-E Sparkling Wine Capsules Machine, Speed of 120Capsules/min.

Does Our Wine Capsules Machine Support 24-hour Working?

Yes, Our Wine Capsules Machine all Support 24-hour Working. Just Need Oiling Machine On Time.

What is the Voltage of Our Wine Capsules Machine?

Our Wine Capsules Machine Standard Voltage is 5 Lines, 3 Phase, 380V 50Hz. If the Customer’s Factory Voltage Was Different, We Would Add a Transformer For Free.

What Certification Does Our Wine Capsule Machine Have?

Our Wine Capsule Machine has CE and RoHS Certifications.

Do You Provide Field Installation and Training?

Yes, if the customer Needs, We Can Send Our Engineer to Your Factory to install the Machine and Train Your Engineer. The Customer Needs to Pay for the Engineer’s round-trip tickets, Food, Hotel, and Salary of USD150/day (8 Hours)

What Our Wine Capsules Machine Guarantees?

Our Wine Capsules Machine Warranty Period is Divided Into 1 Year and 2 Years, based on the Sales Contract Policy.
