Fully Automatic Heat Shrink Gas Capsule Making Machine
Making Heat Shrink PVC / PET Gas Capsules
KTPC-AG
80
pcs/min
Speed
28-34
mm
Diameter
16
pcs
Mandrel
Fully Automatic Heat Shrink Gas Capsule Making Machine
Making Heat Shrink PVC Gas Capsule and PET Gas Capsules
KTPC-AG Series Heat Shrink Gas Capsule Making Machine
This Gas Cylinder Heat Shrink Gas Capsule Making Machine Uses Shrinkable PVC or PET-G Sleeve Film to Make Shrink PVC or PET-G Capsules with or without a Top PP Cap, And Different Optional Functions. It Is Wildly Used for Gas Cap Security Sealing.
Features
- Use Sleeve Shrink PVC or PET-G Material
- Skirt With Printing Mark Sensor
- PLC Touch Screen System
- Auto Add Top PP/PE Cap
- Optional: Top Disc Aluminum Foil
- Optional: Skirt Vertical Perforation
- Optional: Skirt C Punch Function
- Optional: Top Disc Hot Stamp Function
Price Start From: US$40,000.00
Great! I’d like to share this machine:

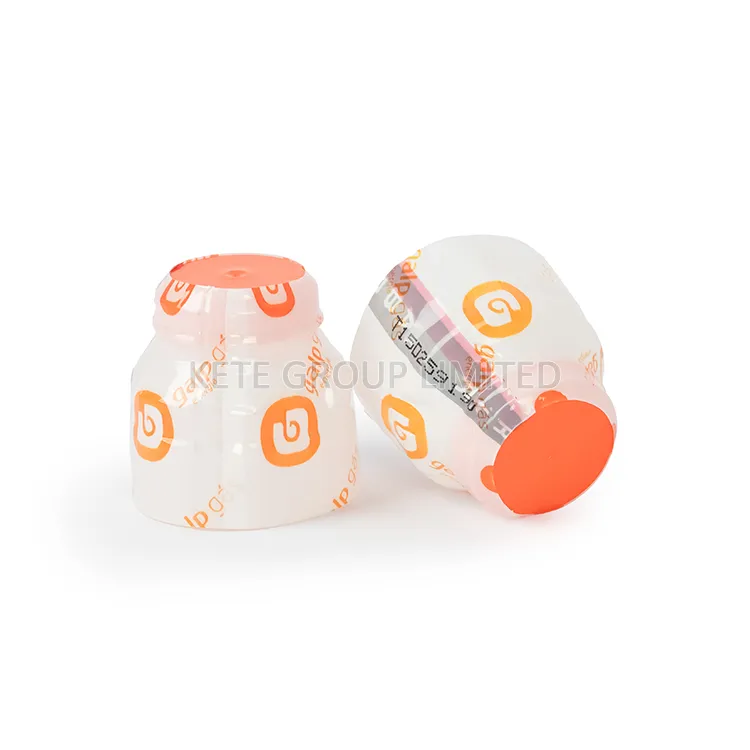

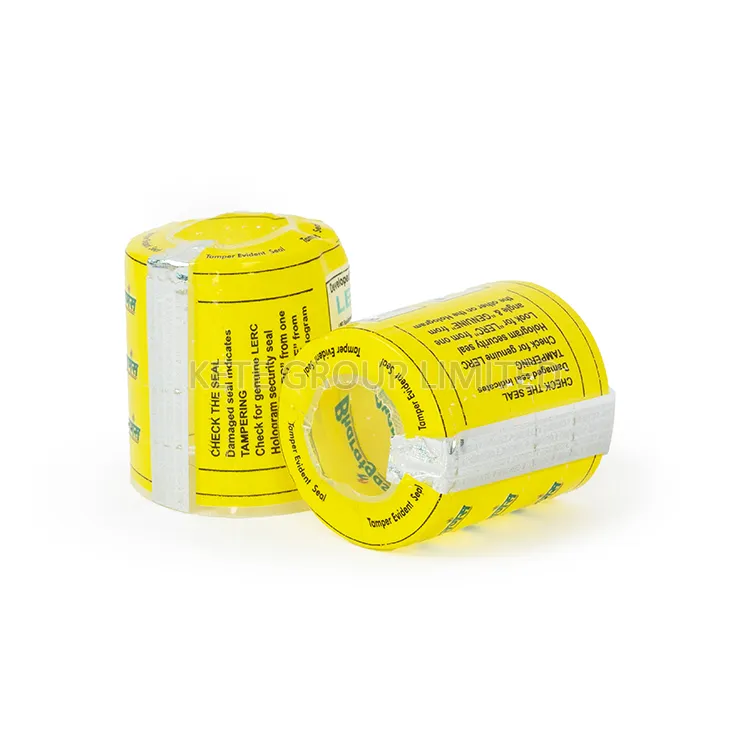

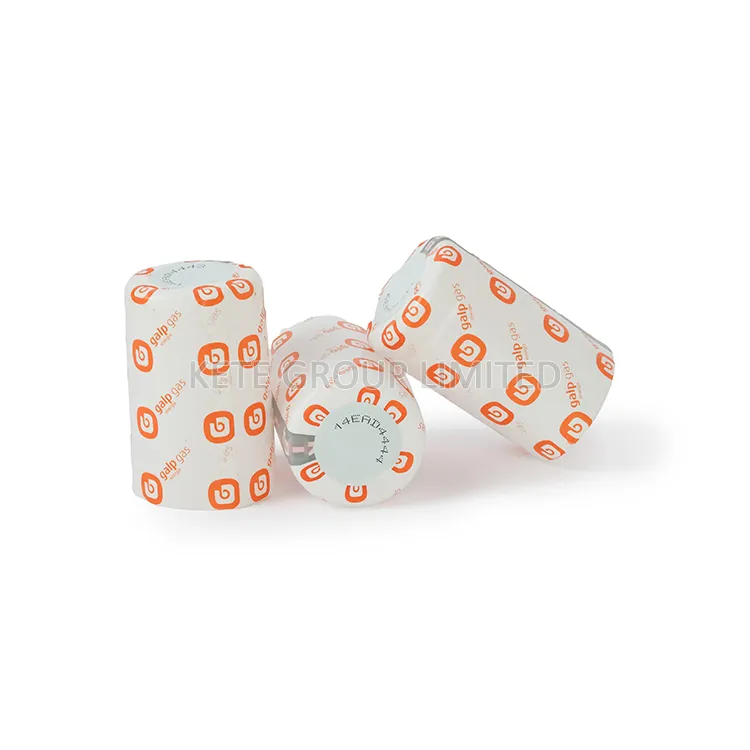

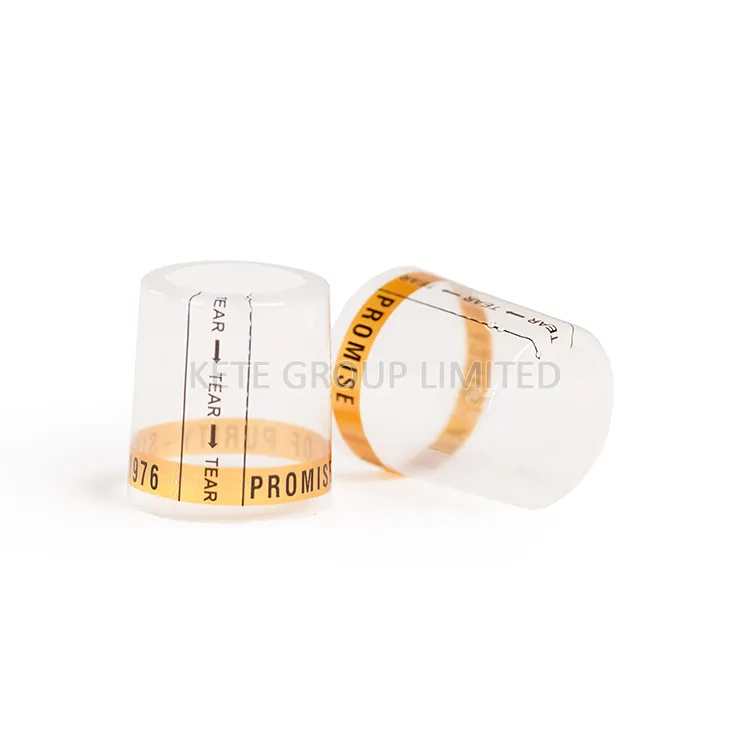

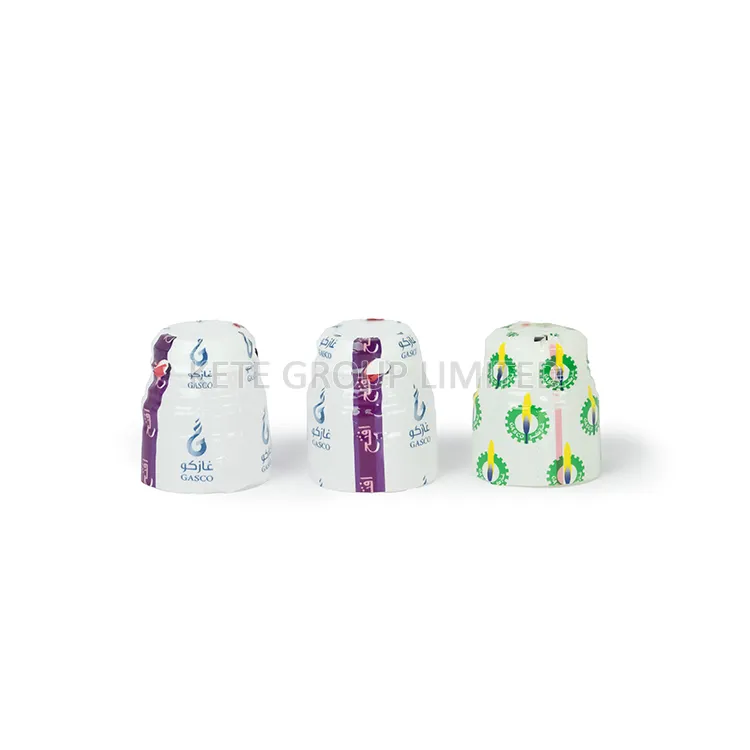

Machine Made Samples
Our Wine Capsule Machine can Make Heat Shrink Pvc Capsules, PET Capsules, Polylam Capsules, Sparkling Wine Capsules, Champagne Capsules,
Gas Cylinder Capsules, 5-gallon Bottle Capsules, Olive Oil Botle Capsules, Candy Bottle Capsules, Clean Sealing Capsules etc.
Let Our Experience Work For You
Machine Specifications
Model
KTPC-AG
Capsules Height
30-70mm (1.18”-2.76”)
Raw Materials
Sleeve Shrink PVC / PET-G Film + PP Cap
Capsules Taper
1.5°-2.5°
Mandrels
16
Max. Capsule Making Speed
80Capsules/min
Max. Unwind Diameter
Φ600mm (23.6″)
Capsules Taper
1.5°-2.5°
Max. Unwind Width
55mm (2.2″)
Paper Core Inner Diameter
Φ76mm (3”)
PVC /PET-G Film Thickness
30-75mic (1.18”-2.95”)
Total Power
3.5kw
PP Cap Diameter
Φ25mm-Φ32mm (0.98”-1.26”)
Machine Weight
1000kg
Capsules Top Diameter
Φ28mm-Φ34mm (1.1”-1.33”)
Machine Size (LWH)
2600x2200x1800mm
Capsules Bottom Diameter
Φ30mm-Φ36mm (1.18”-1.41”)
Power Support
5 Lines 3 Phase 220/380/440V 50/60HZ
Explore Machine Workflow & Function Station
Our Machine is Designed with a Series of High-Precision Stations, Each Station Performing a Specific Function. Explore How Each Station Contributes to the Full Production Process.
From Raw Material Entry to Finished Product Delivery, Every Station is Designed to Work Seamlessly Together for Maximum Productivity and Smart Control.

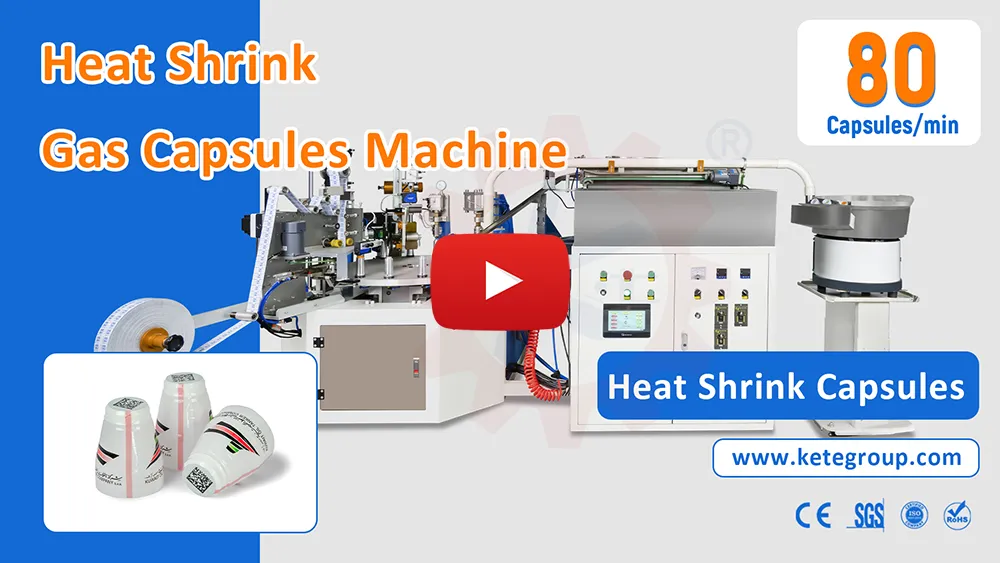

Heat Shrink Gas Capsule Machine
Can Make PVC Gas Capsules and PET Gas Capsules
Unwind
Max Diameter 600mm
PP Cap Feeding
PP Cap Add on Capsule Top
Skirt Sensor
Checking Printing Mark
Forming
Use 16 Mandrels to Make Capsules
Rewind
Collect Finished Capsules
Layout Drawing
Our Wine Capsule Machine Layout Size will be Different, Based on the Machine Functions of your Choice.
Download Our Latest Catalogue
Just Click Button Below to Download our PDF Catalogue
If You Want to Get More Details of KETE’s Wine Capsule Machines
and Their Data Sheet, Please Download Our Catalogue to Check,
and You Will Get Everything Clear.
Our Certificates
We Hold CE, RoHS, ISO, and Other Key Certifications to Ensure Our Machines Meet
Global Quality and Safety Standards.
