Fully Automatic Heat Shrink Capsule Making Machine

Making Heat Shrink PVC/ PET Bottle Capsules

KTPC-A

80

pcs/min

Speed

28-36

Diameter

16

pcs

Mandrel

Fully Automatic Heat Shrink Capsule Making Machine

Making Heat Shrink PVC and PET Bottle Capsules

KTPC-A

80

pcs/min

Speed

28-36

Diameter

16

pcs

Mandrel

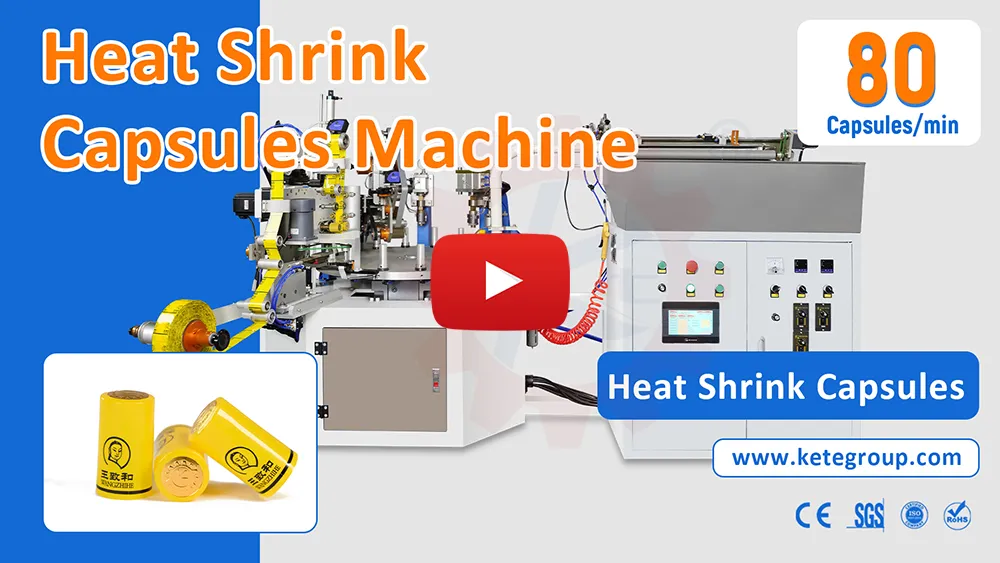

Play

KTPC-A Series Heat Shrink Wine Bottle Capsule Machine

This Heat Shrink Wine Bottle Capsule Machine Uses Shrinkable PVC or PET-G Sleeve Film to Make Shrink PVC or PET-G Capsules with Or Without Top Disc, With Different Optional Functions. It Is Widely Used for Red Wine Bottles, White Wine Bottles, Yellow Wine Bottles, Condiment Bottles, Olive Oil Bottles, Heat Shrink Sealing.

Features

Price Start From: US$ 25,000.00

Great! I’d like to share this machine:

Machine Made Samples

Our Heat Shrink Capsule Making Machine can Make Heat Shrink PVC Capsules, PET Capsules, Clean Sealing Capsules etc.

KETE MACHINE Wine Capsule Machine Heat Shrink Capsules

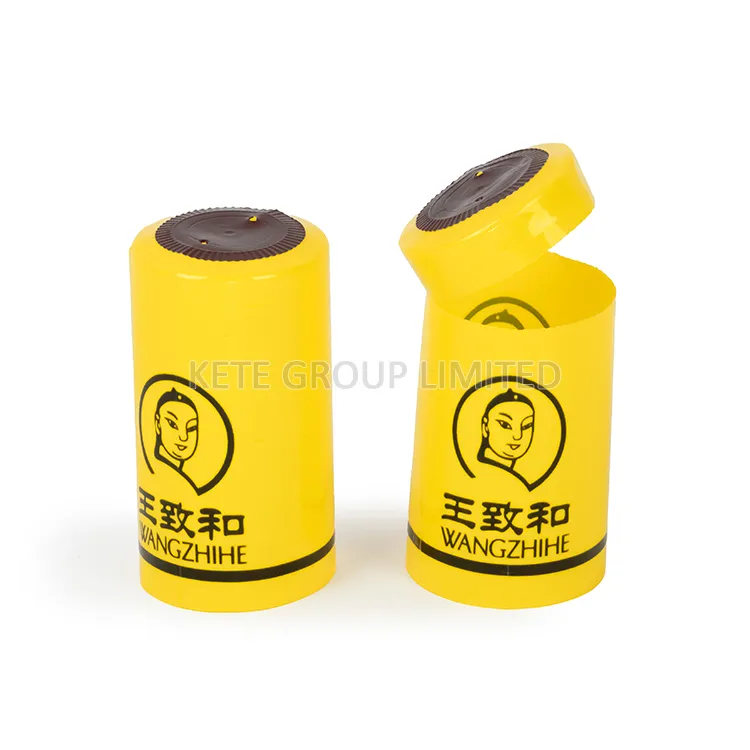

KTPC A Series Heat Shrink Capsule Making Machine Sample (1)

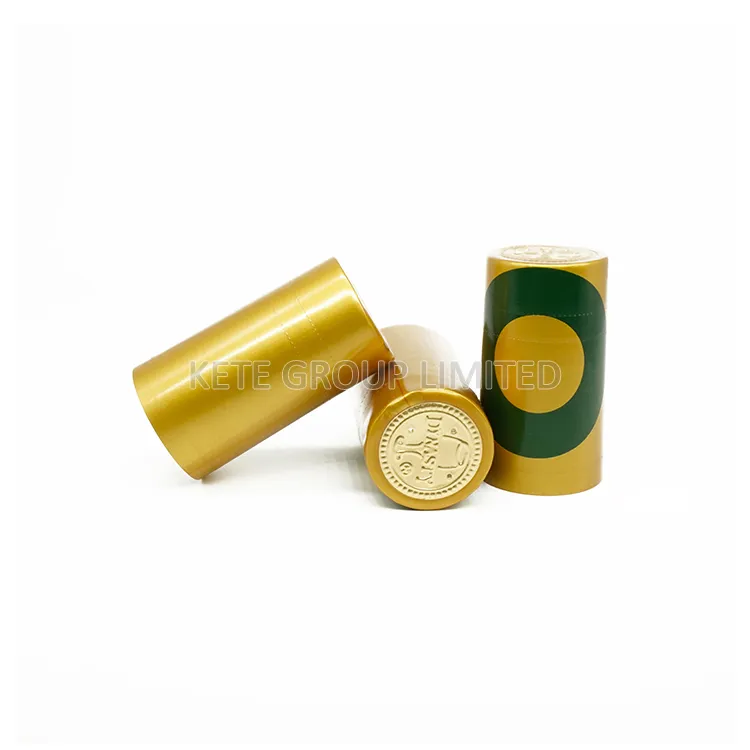

KTPC A Series Heat Shrink Capsule Making Machine Sample (2)

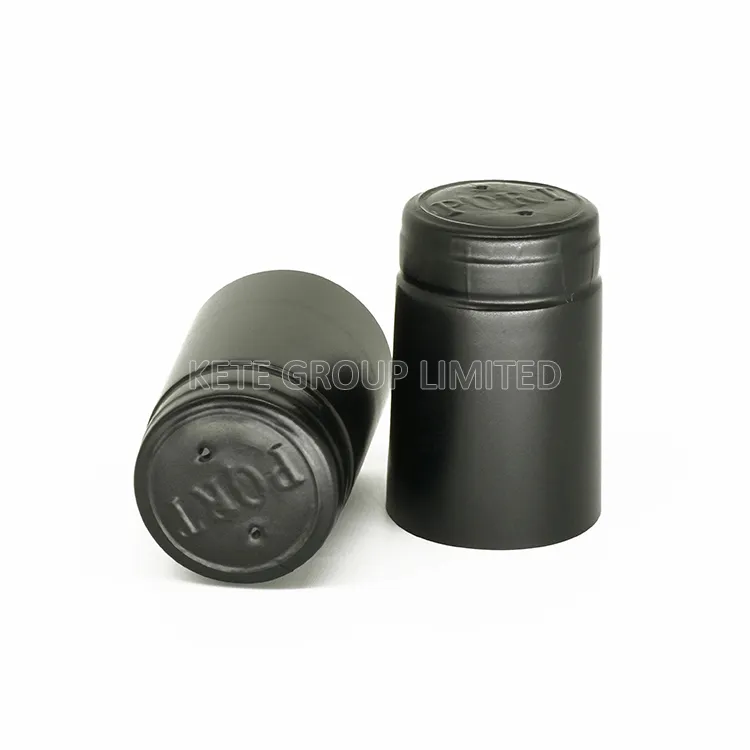

KTPC A Series Heat Shrink Capsule Making Machine Sample (3)

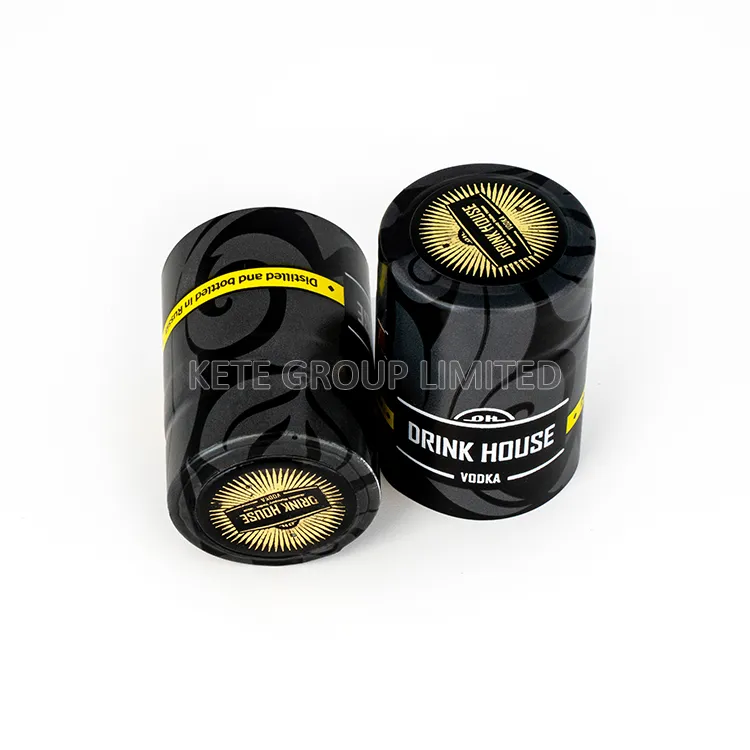

KTPC A Series Heat Shrink Capsule Making Machine Sample (4)

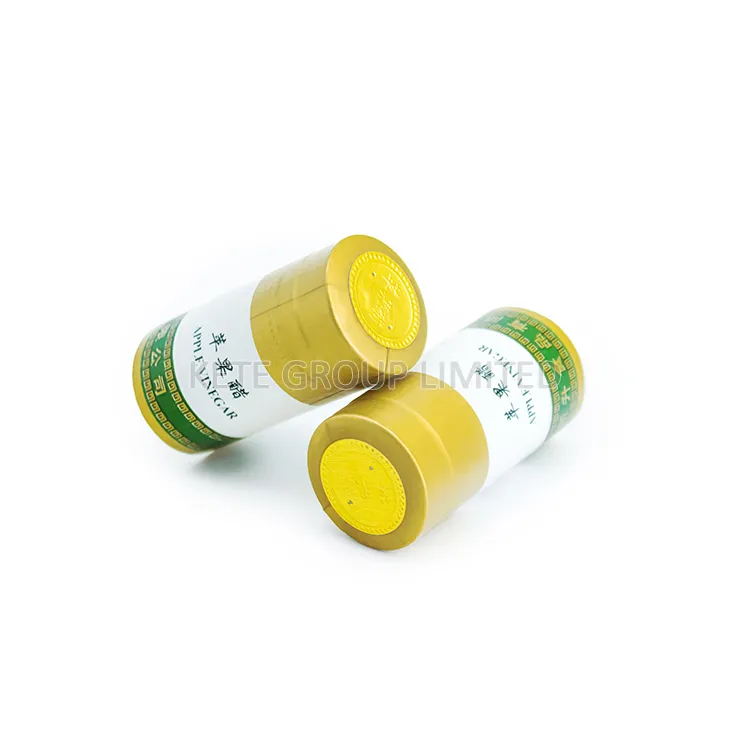

KTPC A Series Heat Shrink Capsule Making Machine Sample (5)

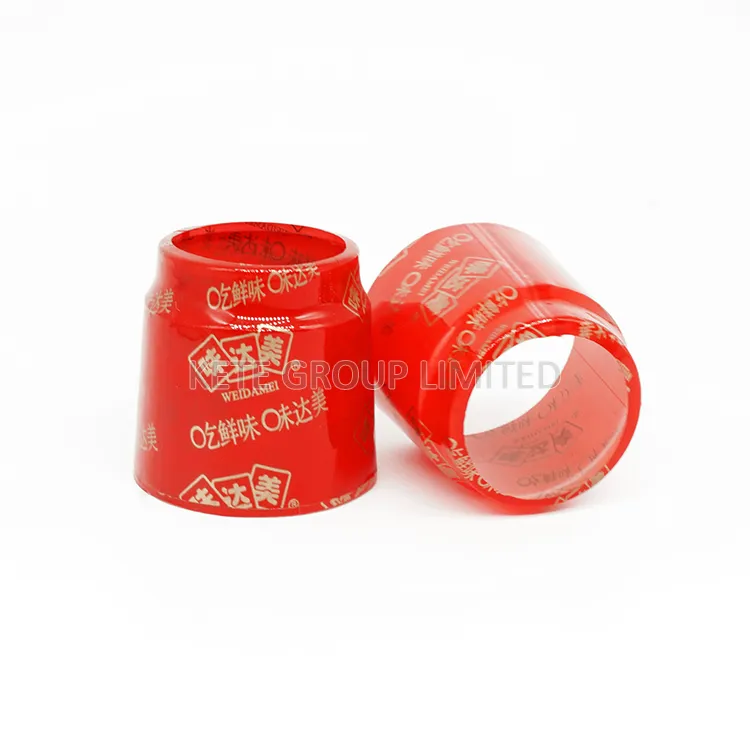

KTPC A Series Heat Shrink Capsule Making Machine Sample (8)

Let Our Experience Work For You

Machine Specifications

Model

KTPC-A

Capsules Taper

1.5°-2.5°

Raw Materials

Sleeve Shrink PVC / PET-G Film

Paper Core Inner Diameter

Φ76mm (3”)

Mandrels

Total Power

3.5kw

Max. Unwind Diameter

Φ600mm (23.6”)

Machine Weight

1000kg

Capsules Top Diameter

Φ28mm-Φ34mm (1.1”-1.33”)

Machine Size (LWH)

2500x2100x1800mm

Capsules Bottom Diameter

Φ30mm-Φ36mm (1.18”-1.41”)

Power Support

5 Lines 3 Phase 220/380/440V 50/60HZ

Capsules Height

30-70mm (1.18”-2.76”)

Film Thickness

30-75mic (1.18”-2.95”)

Max. Capsule Making Speed

80capsules/min

Explore Machine Workflow & Function Station

Our Machine is Designed with a Series of High-Precision Stations, Each Station Performing a Specific Function. Explore How Each Station Contributes to the Full Production Process.
From Raw Material Entry to Finished Product Delivery, Every Station is Designed to Work Seamlessly Together for Maximum Productivity and Smart Control.

Heat Shrink Capsule Making Machine

Can Make PVC Capsules and PET Capsules

Unwind

Max Diameter 600mm

Horizontal Perforation

Make Perforation on the Capsule Skirt for Easy Opening

C-Puncher

Make C Punching on Perforation Line

Veartical Perforation

Make Vertical Perforation on Skirt for Easy Opening

Skirt Sensor

Checking Printing Mark

Forming

Forming Capsule By 16 Mandrels

Rewind

Collect Finished Capsules

Touch Screen

Integrated Control of Machine, Including Functions, Parameters, Temperature, And Speed

Layout Drawing

Our Heat Shrink Capsule Making Machine Layout Size will be Different, based on the Machine Functions of your Choice.

Download Our Latest Catalogue

Just Click Button Below to Download our PDF Catalogue

If You Want to Get More Details of KETE’s Wine Capsule Machines
and Their Data Sheet, Please Download Our Catalogue to Check,
and You Will Get Everything Clear.

Our Certificates

We Hold CE, RoHS, ISO, and Other Key Certifications to Ensure Our Machines Meet
Global Quality and Safety Standards.

Machine FAQ

Have Questions About Our Wine Capsule Machines? Find Quick Answers to The Most Common Topics, From Machine Features and Lead Times to Installation, Maintenance, Material, And Support. If You Don’t See Your Question Here, Feel Free To Contact us directly. We’re Happy to Help.

What Materials Can be Used in Our Wine Capsule Machine?

Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

What is The Production Time of Our Wine Capsule Machine?

Our KTPC-C Wine Capsule Machine Needs 40-50 Working Days, KTPC-D High Speed Wine Capsule Machine Needs 70-80 Working Days, KTPC-E Sparkling Wine Capsule Machine Needs 120-150 Working Days.

Is the Same Wine Capsules Machine Making Different Capsules?

Yes, Customer Can Order Machine Only Make PVC Capsules or Only Make PET Capsules or Only Make Polylam Capsules, But Customer Also Can Order Same Machine Can Make PVC Capsules and Polylam Capsules. Even Make Aluminum Foil Capsules.

What is The Speed of Our Wine Capsules Machine?

We Have KTPC-C model Wine Capsule Machine, Speed of 120Capsules/min, and KTPC-D High Speed Wine Capsules Machine, Speed of 180Capsules/min, and KTPC-E Sparkling Wine Capsules Machine, Speed of 120Capsules/min.

Does Our Wine Capsules Machine Support 24-hour Working?

Yes, Our Wine Capsules Machine all Support 24-hour Working. Just Need Oiling Machine On Time.

What is the Voltage of Our Wine Capsules Machine?

Our Wine Capsules Machine Standard Voltage is 5 Lines, 3 Phase, 380V 50Hz. If the Customer’s Factory Voltage Was Different, We Would Add a Transformer For Free.

What Certification Does Our Wine Capsule Machine Have?

Our Wine Capsule Machine has CE and RoHS Certifications.

Do You Provide Field Installation and Training?

Yes, if the customer Needs, We Can Send Our Engineer to Your Factory to install the Machine and Train Your Engineer. The Customer Needs to Pay for the Engineer’s round-trip tickets, Food, Hotel, and Salary of USD150/day (8 Hours)

What Our Wine Capsules Machine Guarantees?

Our Wine Capsules Machine Warranty Period is Divided Into 1 Year and 2 Years, based on the Sales Contract Policy.

Related Machines & Equipment

We Provide Not Only Core Wine Capsule Machines but Also Matching Support Equipment, Such As Rotogravure Printing Machines,Flexo Printing Machines, Slitting Machines,
Seaming Machines, and Cutting Machines to Help You Complete Your Production Setup with Confidence.
