Heat Shrink PVC / PET / Polylam Rotogravure Printing Machine
Roll To Roll Printing Heat Shrink PVC / PET Film / Polylam Material
KTGP-MS
150
m/min
Speed
120-300
mm
Diameter
12
Max
Colors
Heat Shrink PVC / PET / Polylam Rotogravure Printing Machine
Roll To Roll Printing Heat Shrink PVC / PET Film / Polylam Material

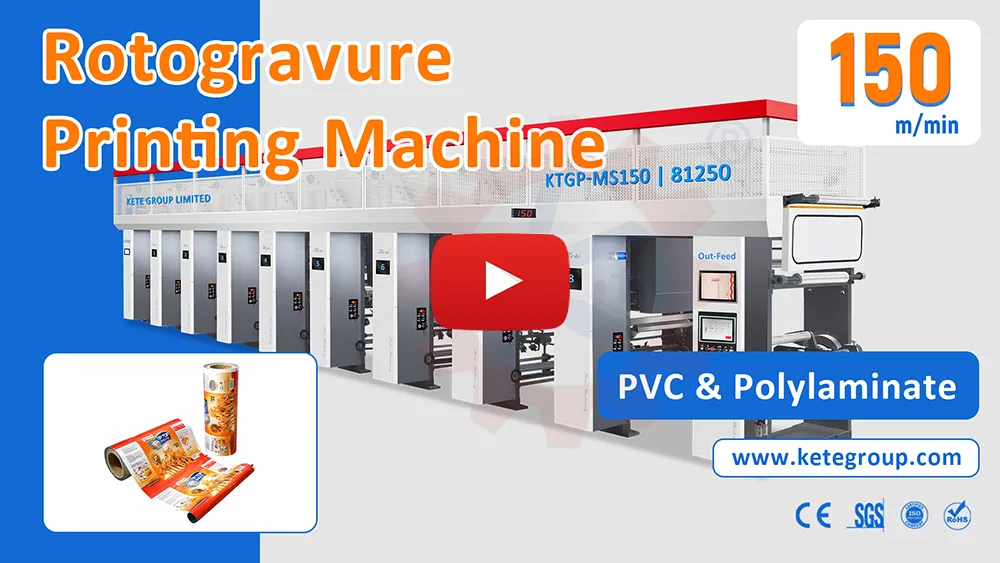

KTGP-MS Series Rotogravure Printing Machine (MLS)
This Rotogravure Printing Machine is Suitable for Roll-To-Roll Printing Materials Such as PVC Film, PET-G Film, Polyalminate Material, Aluminum Foil, etc. It Is Widely Used in Wine Capsules Packaging Material Printing Industries.
Features
- Shaft-less Printing Cylinder
- Auto Ink Recycle System
- With Auto Color Register System
- With Web Video Inspection System
- Optional: Water Chilling System
- Optional: Reverse Printing Turn Bar
- Optional: Ink Viscosity Controller
- Optional: Extra Heating Oven
- Optional: Inline Slitting
Price Start From: US$ 70,000.00
Great! I’d like to share this machine:

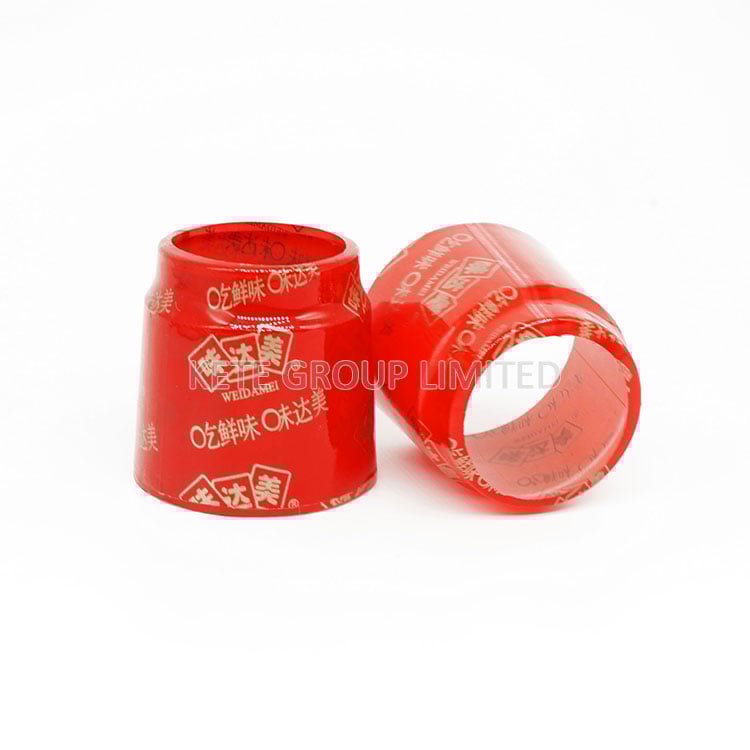

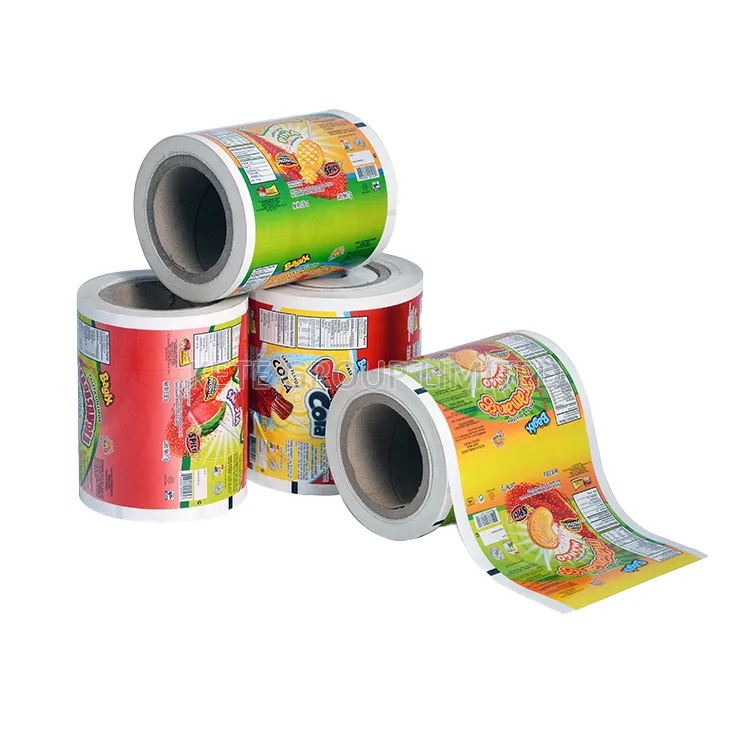

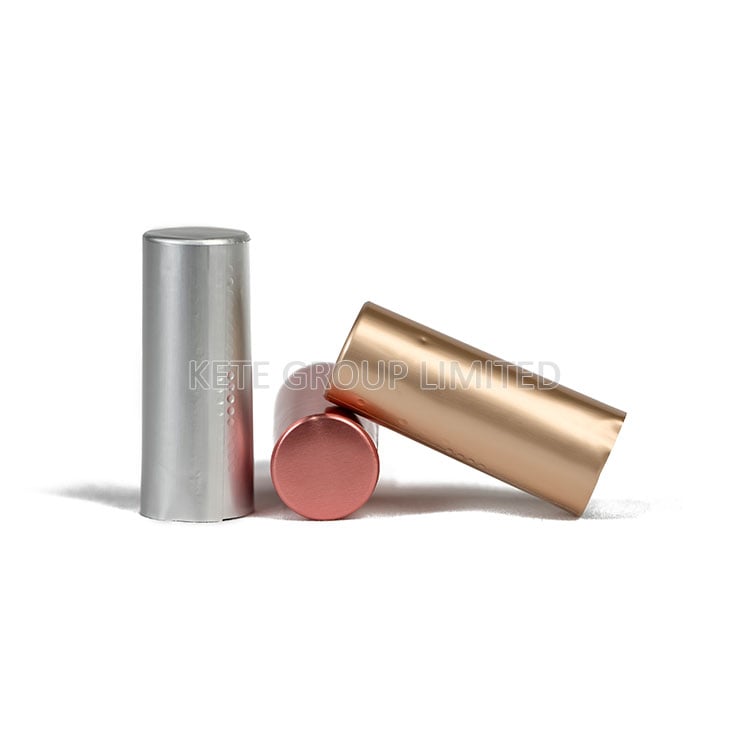

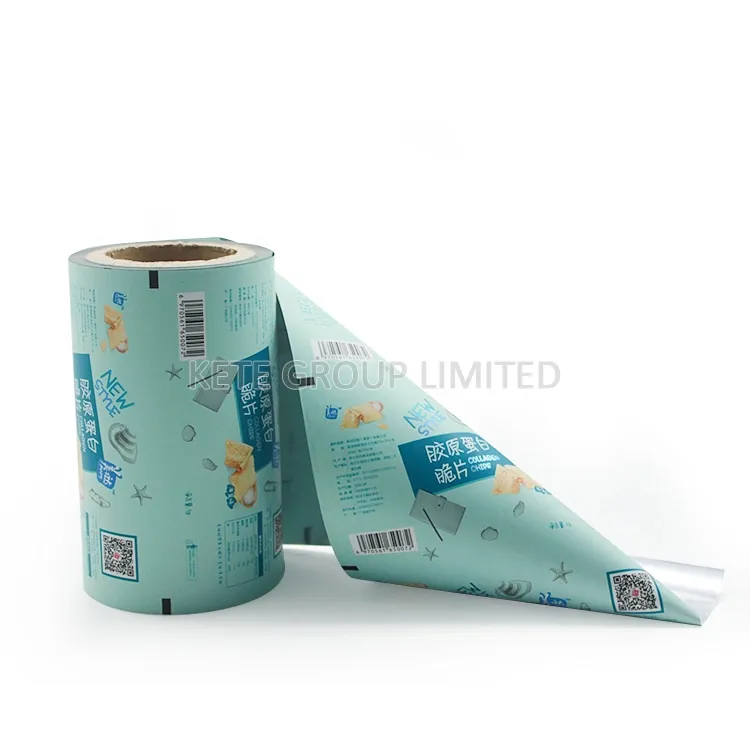

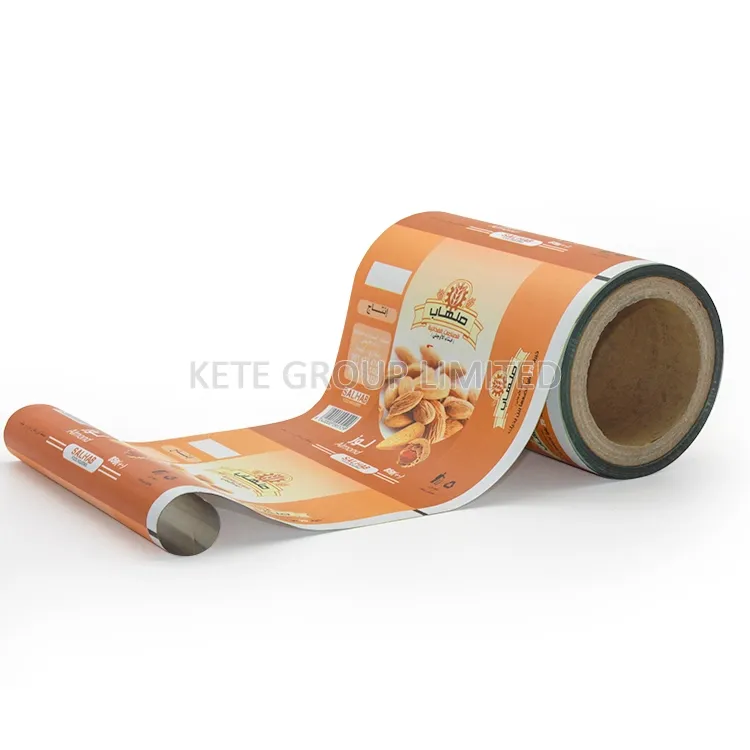

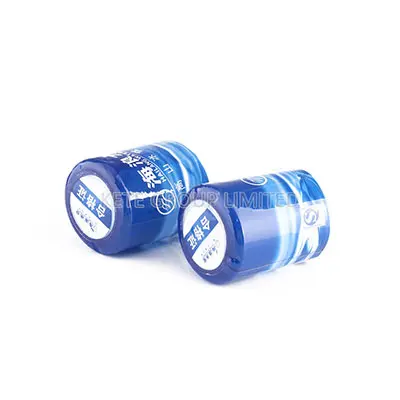

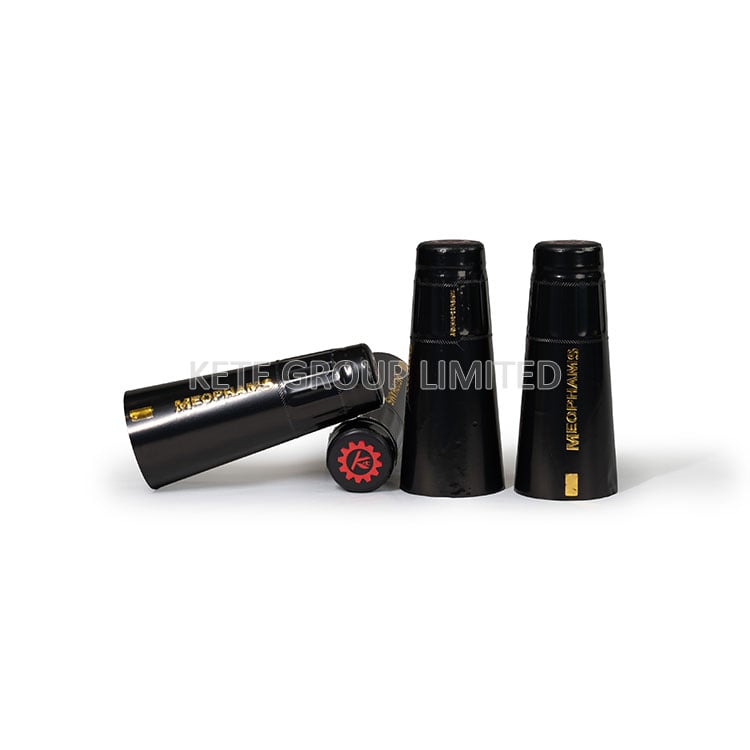

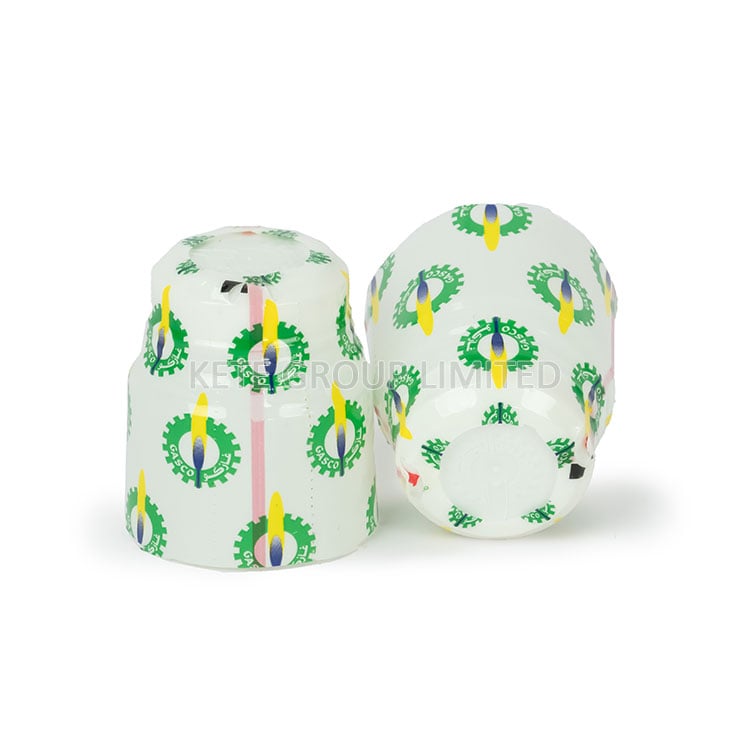

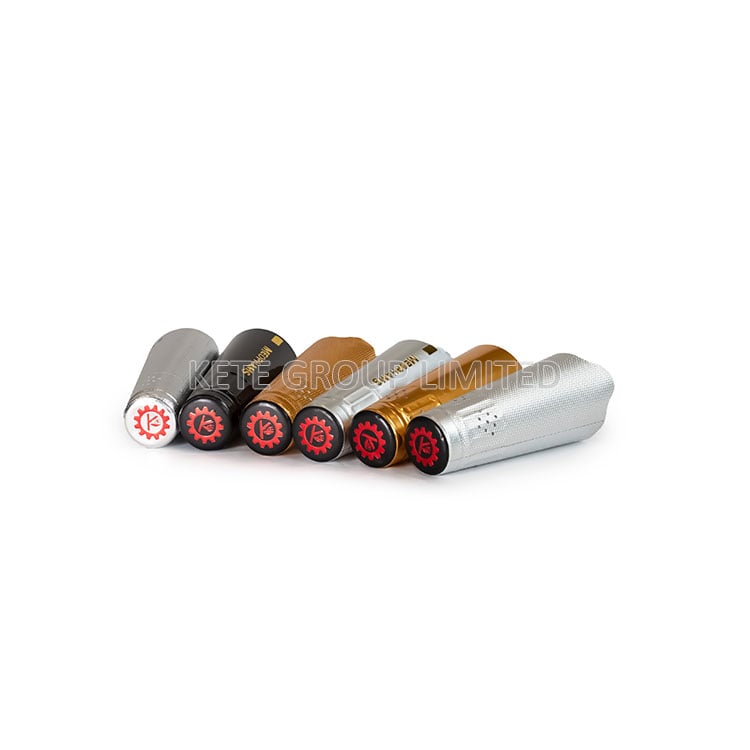

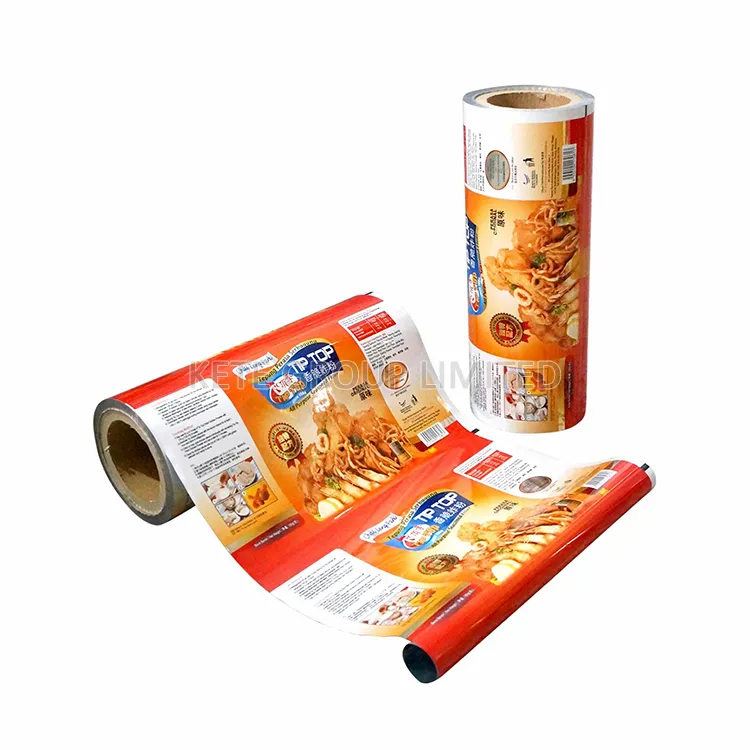

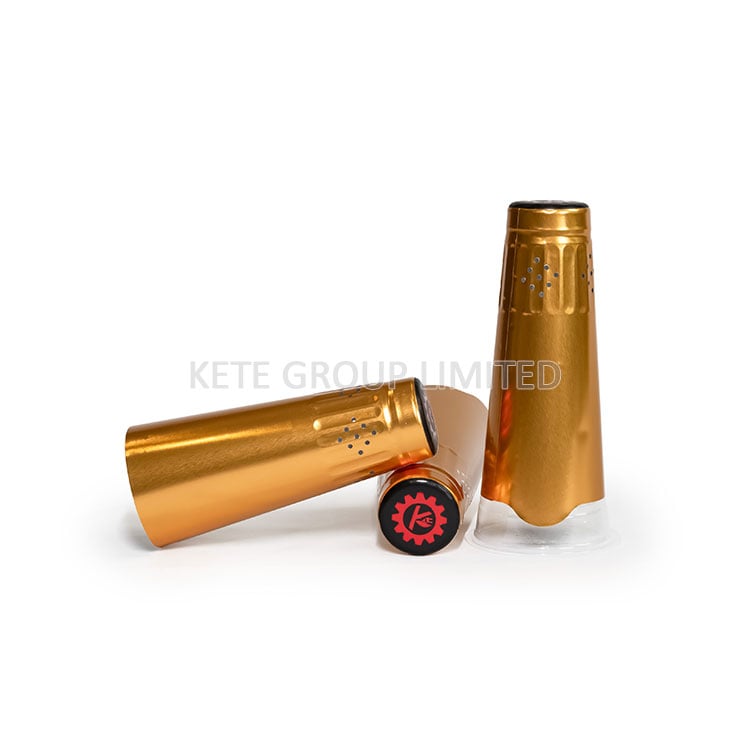

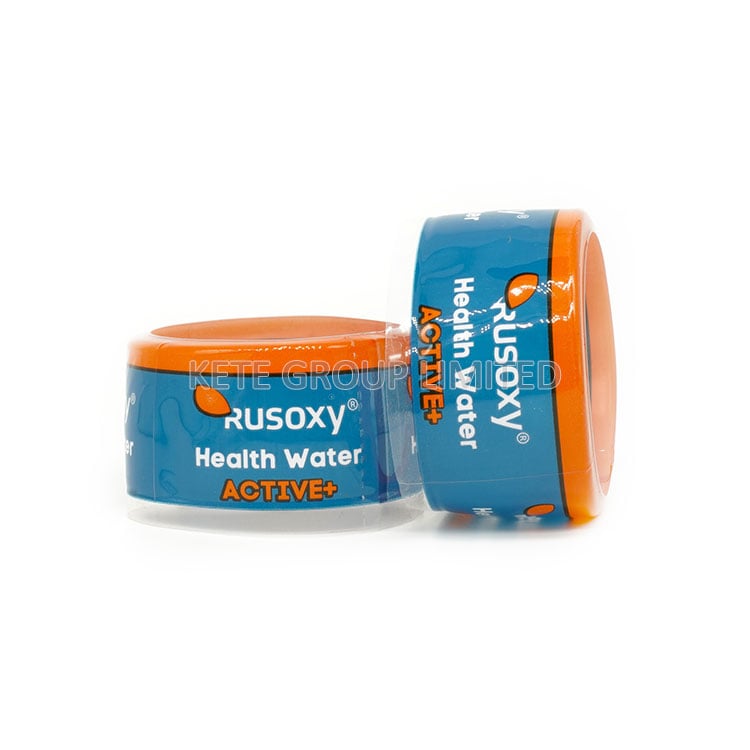

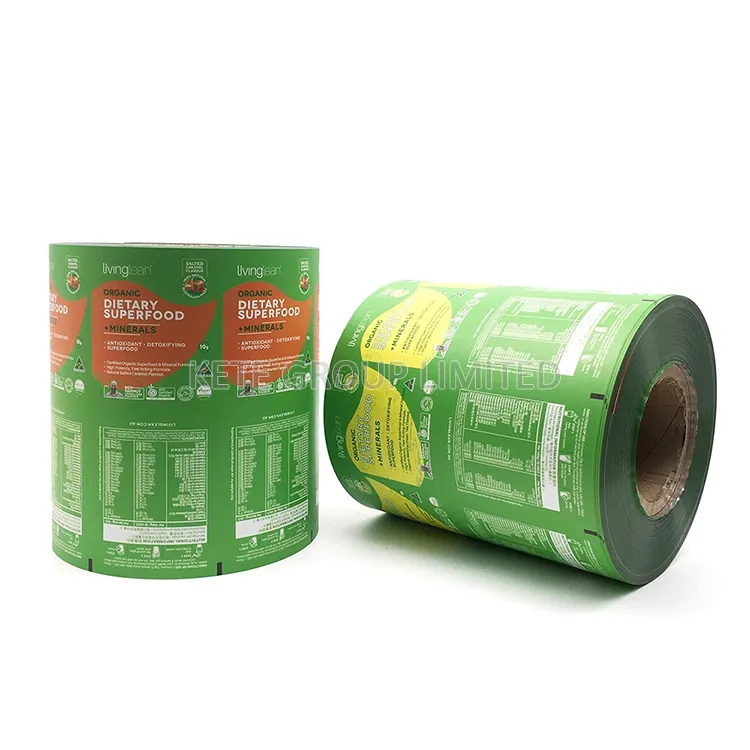

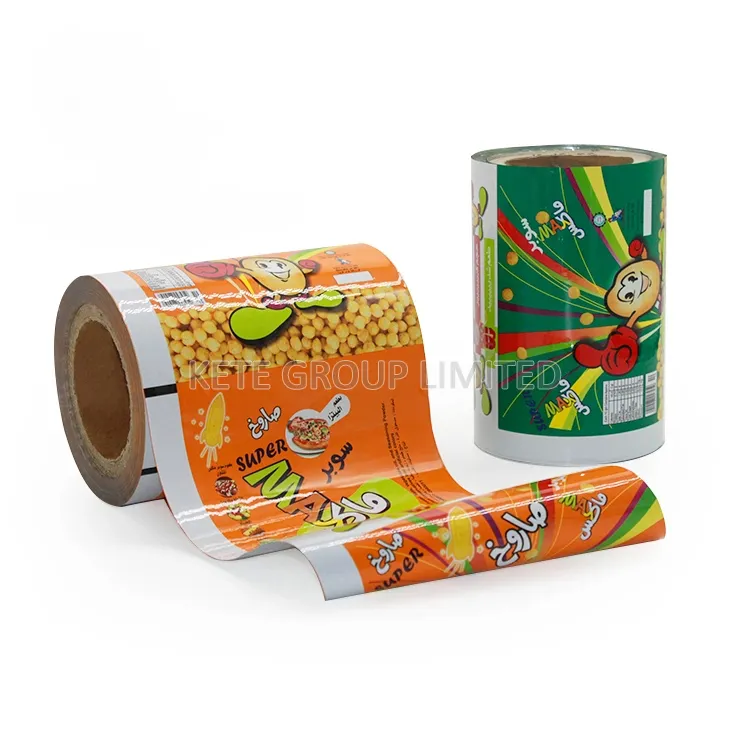

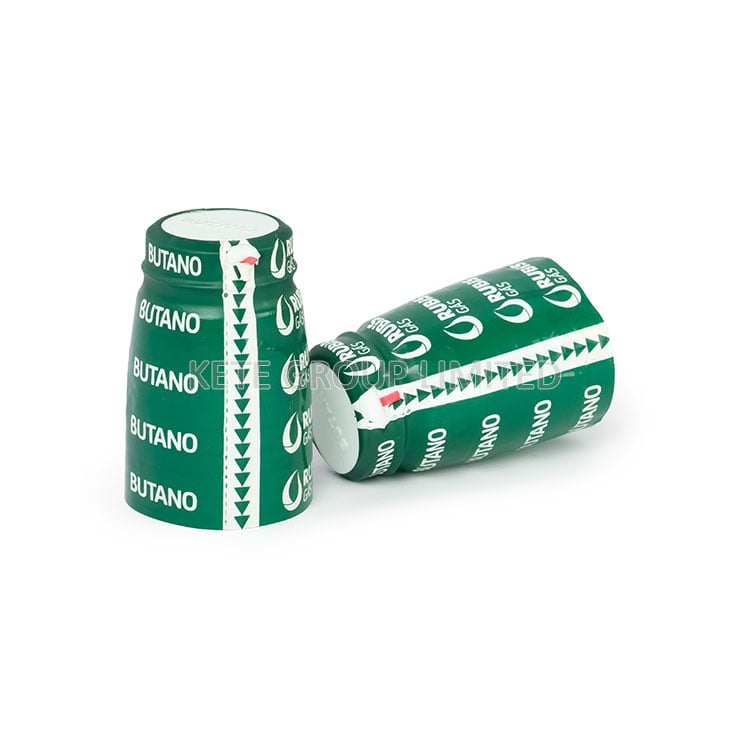

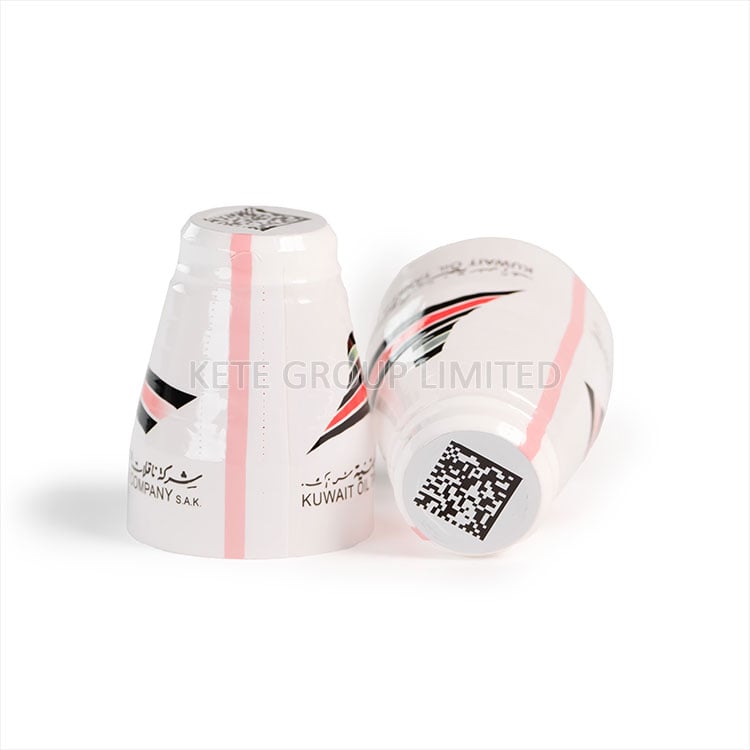

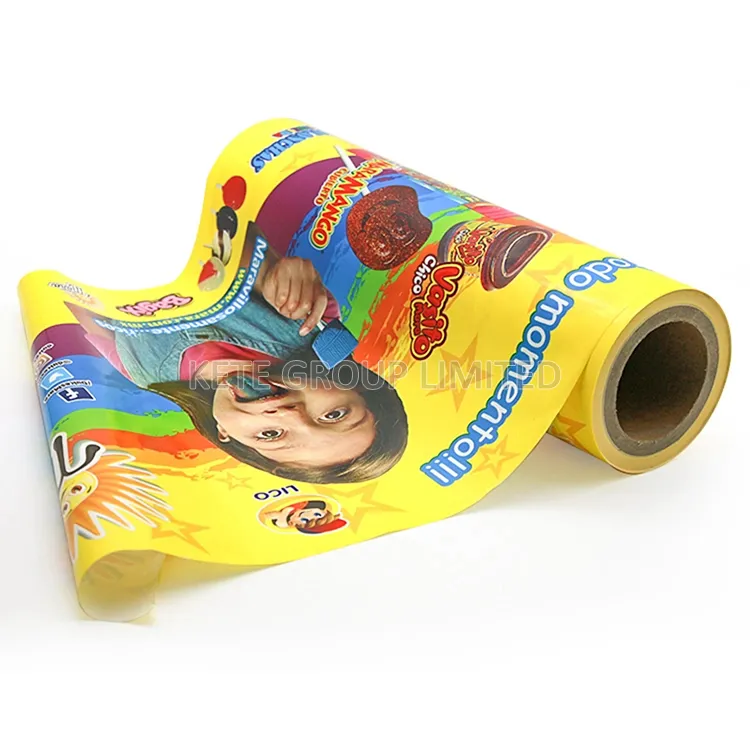

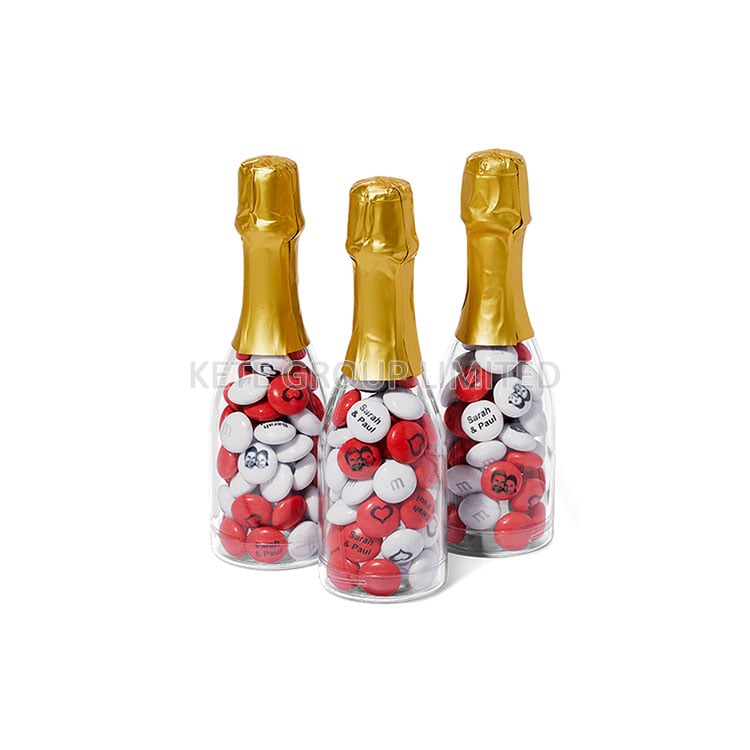

Machine Made Samples
Our Rotogravure Printing Machine is Suitable for Roll-To-Roll Printing Materials Such as PVC Film, PET-G Film, Polyalminate Material, Aluminum Foil, etc.
Let Our Experience Work For You
Machine Specifications
Model
KTGP-MS150
Model
KTGP-MS120
Raw Materials
Shrink PVC Film / PET-G Film/Polylaminate
Raw Materials
Shrink PVC Film / PET-G Film/Polylaminate
Max. Printing Color
12
Max. Printing Color
12
Max. Unwind Diameter
Φ600mm (23.6”)
Max. Unwind Diameter
Φ600mm (23.6”)
Max. Rewind Diameter
Φ600mm (23.6”)
Max. Rewind Diameter
Φ600mm (23.6”)
PVC /PET-G Film Thickness
60-75mic (2.36”-2.95”)
PVC /PET-G Film Thickness
60-75mic (2.36”-2.95”)
Polylaminate Material Thickness
100-120mic (3.94”-4.72”)
Polylaminate Material Thickness
100-120mic (3.94”-4.72”)
Printing Cylinder Diameter
Φ120mm-Φ300mm (4.7”-11.8”)
Printing Cylinder Diameter
Φ120mm-Φ300mm (4.7”-11.8”)
Max. Mechanical Speed
150m/min
Max. Mechanical Speed
120m/min
Explore Machine Workflow & Function Station
Our Machine is Designed with a Series of High-Precision Stations, Each Station Performing a Specific Function. Explore How Each Station Contributes to the Full Production Process.
From Raw Material Entry to Finished Product Delivery, Every Station is Designed to Work Seamlessly Together for Maximum Productivity and Smart Control.

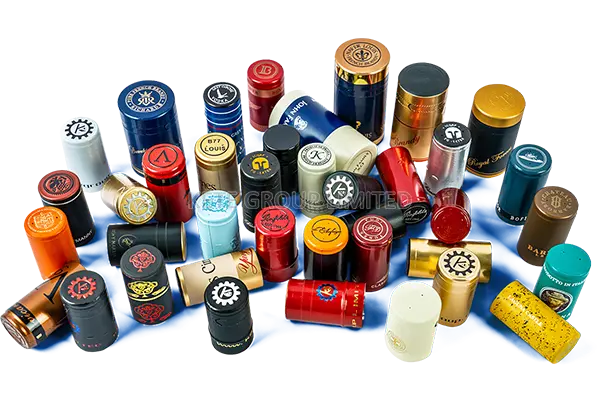

Wine Capsule Machine
Can Make PVC Capsules and Polylam Capsules
Unwind
With EPC System and Support Reverse Running
Perforation + C Punch
Make Perforation and C Punch on the Capsule Skirt for Easy Opening
Skirt Hot Stamp
Do Hot Stamp on the Capsule Skirt, Support 1 Color or 2 Colors
Tear Off Tape
Make Horizontal and Vertical Tear Off Tape on Skirt for Easy Opening
Touch Screen
Integrated Control of Machine, Including Functions, Parameters, Temperature, And Speed
Layout Drawing
Our Wine Capsule Machine Layout Size will be Different, Based on the Machine Functions of your Choice.
Download Our Latest Catalogue
Just Click Button Below to Download our PDF Catalogue
If You Want to Get More Details of KETE’s Wine Capsule Machines
and Their Data Sheet, Please Download Our Catalogue to Check,
and You Will Get Everything Clear.
Our Certificates
We Hold CE, RoHS, ISO, and Other Key Certifications to Ensure Our Machines Meet
Global Quality and Safety Standards.
