Customized Heat Shrink Sleeve Cutting Machine
Cutting Heat Shrink Sleeve (PVC/PET)
KTCM-LS
500
times/min
Speed
600
mm
Diameter
300
mm
Width
Customized Heat Shrink Sleeve Cutting Machine
Cutting Heat Shrink Sleeve (PVC/PET)
KTCM-LS Series Heat Shrink Sleeve Cutting Machine
This Series Heat Shrink Sleeve Die Cutting Machine Is Suitable for Cutting Shrink Sleeve, Paper, Label Etc.
Features
- Microcomputer Control System
- Material Feeding by Stepping Motor
- With Length Control System
- With Automatic Counting System
- With Rewind Table
- Optional: Vertical Perforation
- Optional: Horizontal Perforation
- Optional: Roll Rewind Design
- Optional: Hot Glue Coating Device
Price Start From: US$ 10,000.00
Great! I’d like to share this machine:

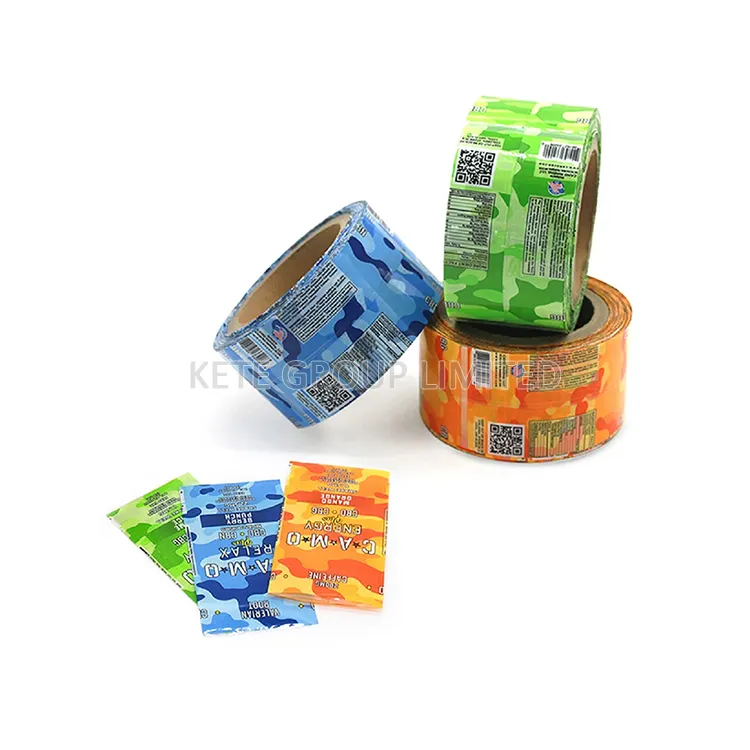

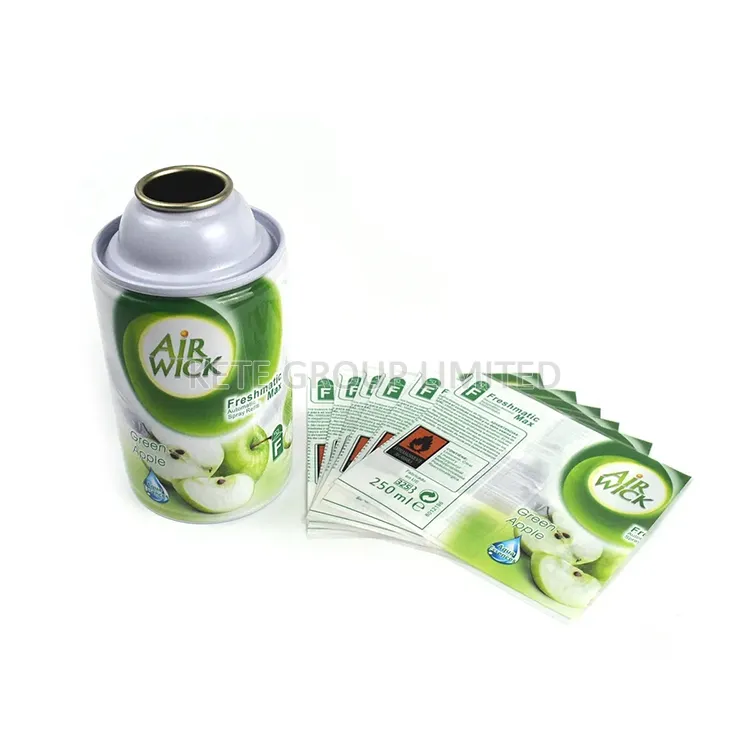

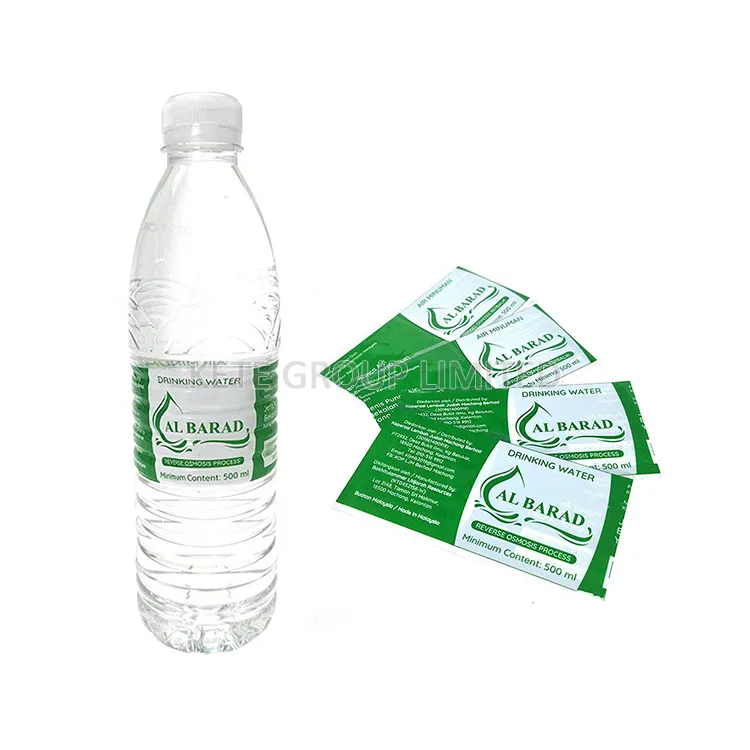

Machine Made Samples
Our Heat Shrink Sleeve Cuting Machine can Make Heat Shrink PVC Sleeves and PET Sleeves
Let Our Experience Work For You
Machine Specifications
Model
KTCM-LS350
Model
KTCM-LS420
Raw Materials
PVC/PET Heat Shrink Sleeves
Raw Materials
PVC/PET Heat Shrink Sleeves
Max. Raw Material Width
300 (11.8″)
Max. Raw Material Width
400mm (15.7″)
Max. Unwind Diameter
Φ600mm (23.6”)
Max. Unwind Diameter
Φ600mm (23.6”)
PVC /PET Film Thickness
30-75mic (1.18″-2.95″)
PVC /PET Film Thickness
30-75mic (1.18″-2.95″)
Machine Power
3kw
Machine Power
3kw
Machine Weight
1000kg
Machine Weight
1000kg
Machine Size (LWH)
3200x1600x1800mm
Machine Size (LWH)
3200x1600x1800mm
Power Support
5 Lines 3 Phase 220/380/440V 50/60HZ
Power Support
5 Lines 3 Phase 220/380/440V 50/60HZ
Explore Machine Workflow & Function Station
Our Machine is Designed with a Series of High-Precision Stations, Each Station Performing a Specific Function. Explore How Each Station Contributes to the Full Production Process.
From Raw Material Entry to Finished Product Delivery, Every Station is Designed to Work Seamlessly Together for Maximum Productivity and Smart Control.

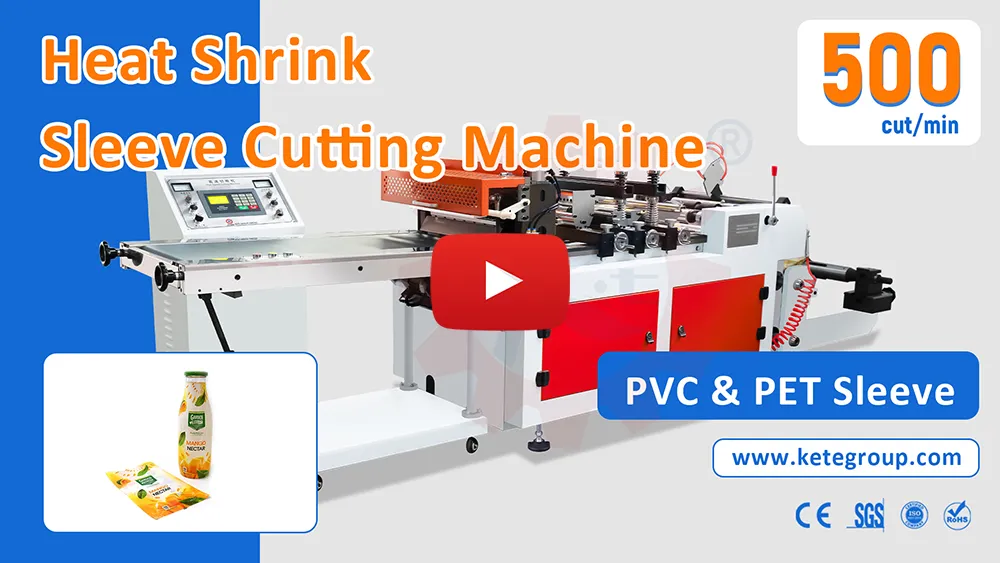

Heat Shrink Sleeve Cutting Machine
Can Make PVC /PET Sleeves
Unwind
Max. Diameter 600mm
EPC
Control Material Edge
Perforation
Vertical Continuous Perforation
Perforation
Make Horizontal and Vertical Perforation
Vertical Perforation
Separation Vertical Perforation
Horizontal Perforation
Single Line or Double Line
Rewind Table
Collect Finished Sleeves
Roll Rewind
Collect Finished Sleeve In Roll Type
Layout Drawing
Our Wine Capsule Machine Layout Size will be Different, Based on the Machine Functions of your Choice.
Download Our Latest Catalogue
Just Click Button Below to Download our PDF Catalogue
If You Want to Get More Details of KETE’s Wine Capsule Machines
and Their Data Sheet, Please Download Our Catalogue to Check,
and You Will Get Everything Clear.
Our Certificates
We Hold CE, RoHS, ISO, and Other Key Certifications to Ensure Our Machines Meet
Global Quality and Safety Standards.
