Heat Shrink PVC / PET / Polylam Roll to Roll Slitting Machine
Roll To Roll Slitting Heat Shrink PVC / PET Film / Polylam Material
KTSM-C
400
m/min
Speed
600
mm
Diameter
1100
mm
Width
Heat Shrink PVC / PET / Polylam Roll to Roll Slitting Machine
Roll To Roll Slitting Heat Shrink PVC / PET Film / Polylam Material

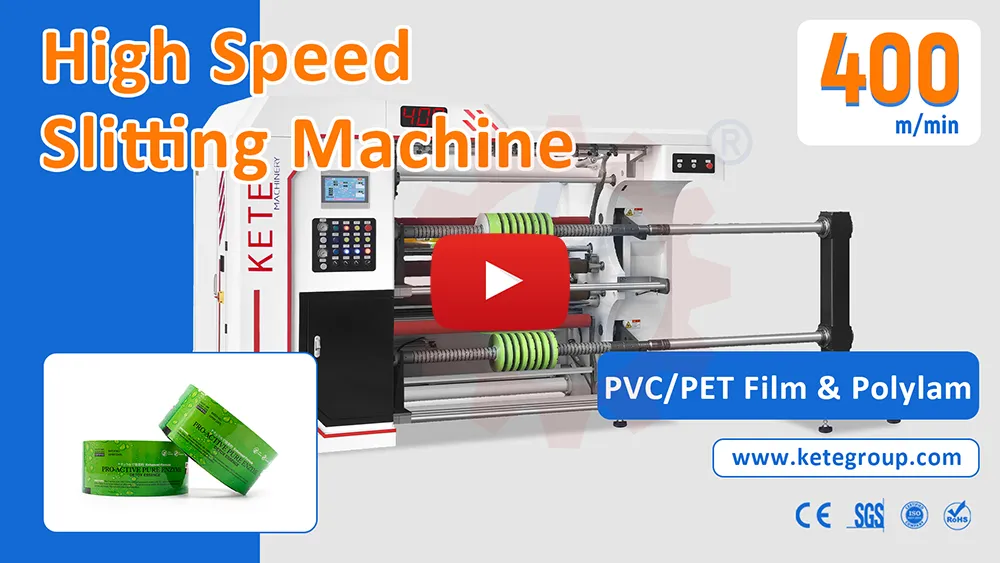

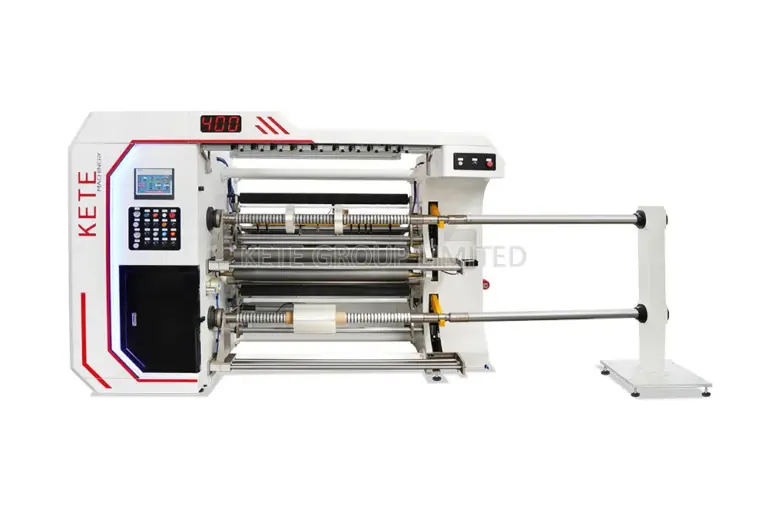

KTSM-C Series Roll to Roll Slitting Machine
This High Speed Slitting Machine Is Specially Designed For Slitting and Rewinding Flexible Packaging Materials Like PET, BOPP, CPP, PE, PVC Film, or Paper, With a 3-motor Drive System, It can Get Good Quality Finished Rolls with Smooth Edges.
Features
- Shear or Razor Blade Slitting
- Unwind Shaftless Auto Loading
- Unwind EPC Control System
- Auto Tension Control System
- Duplex Rewinder Differential Shafts
- Optional: Laser Core Positioning
- Optional: Trim Waste Winder
- Optional: Auto Pusher with Unload Tree
- Optional: Camera System
- Optional: Safety Fencing and Safety Sensor
Price Start From: US$ 40,000.00
Great! I’d like to share this machine:

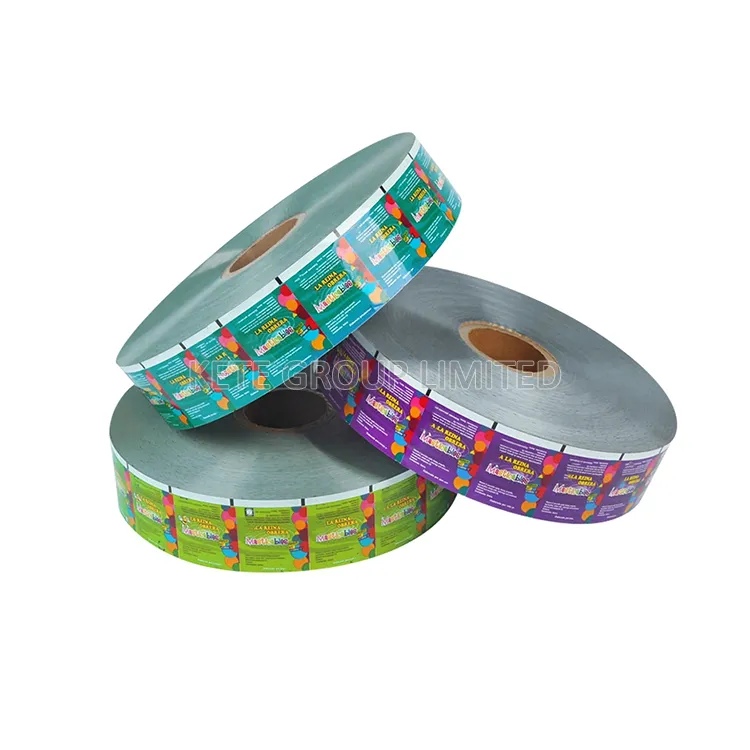

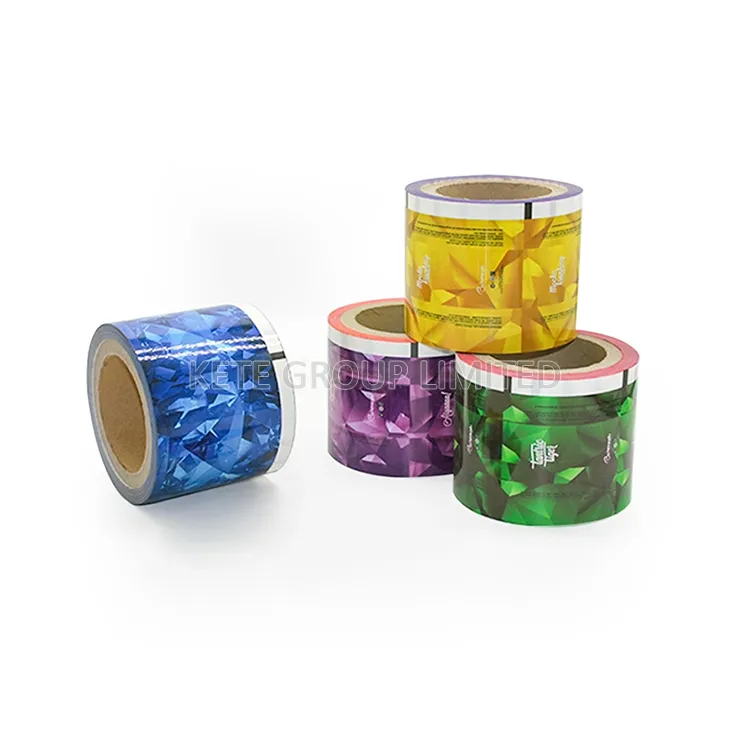

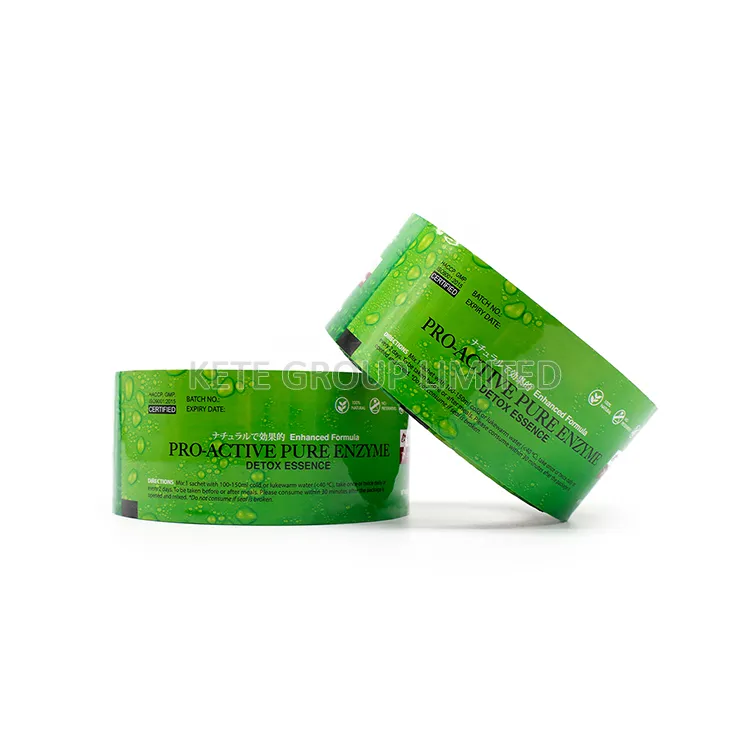

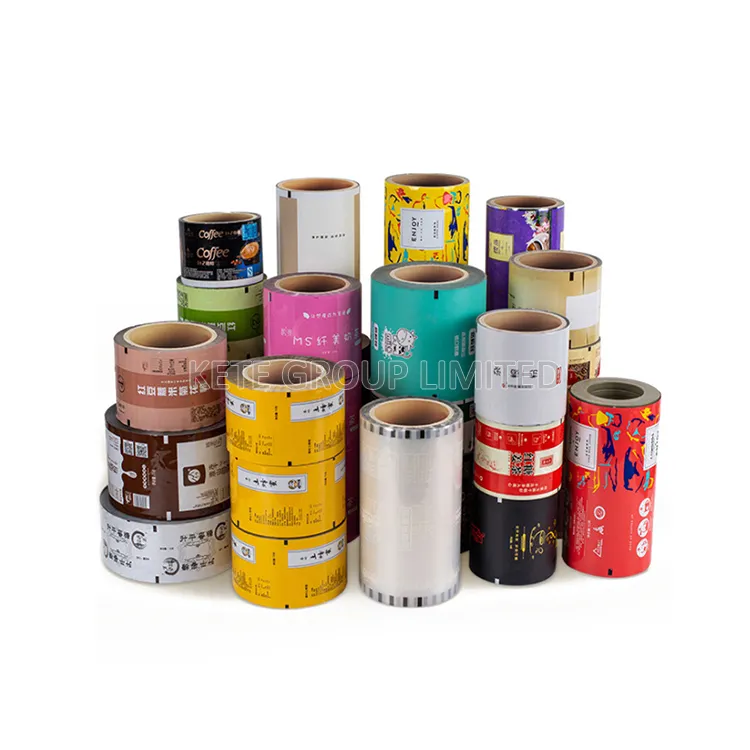

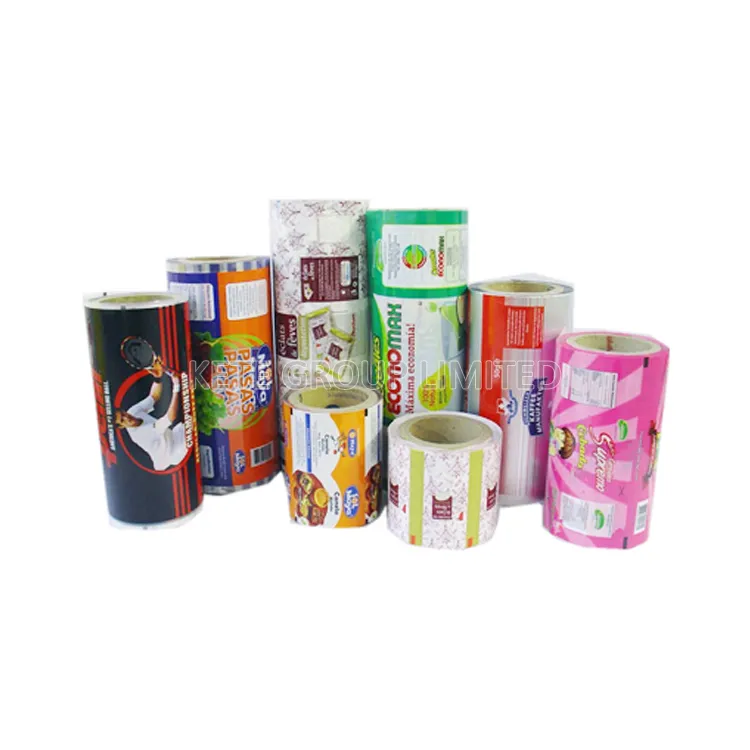

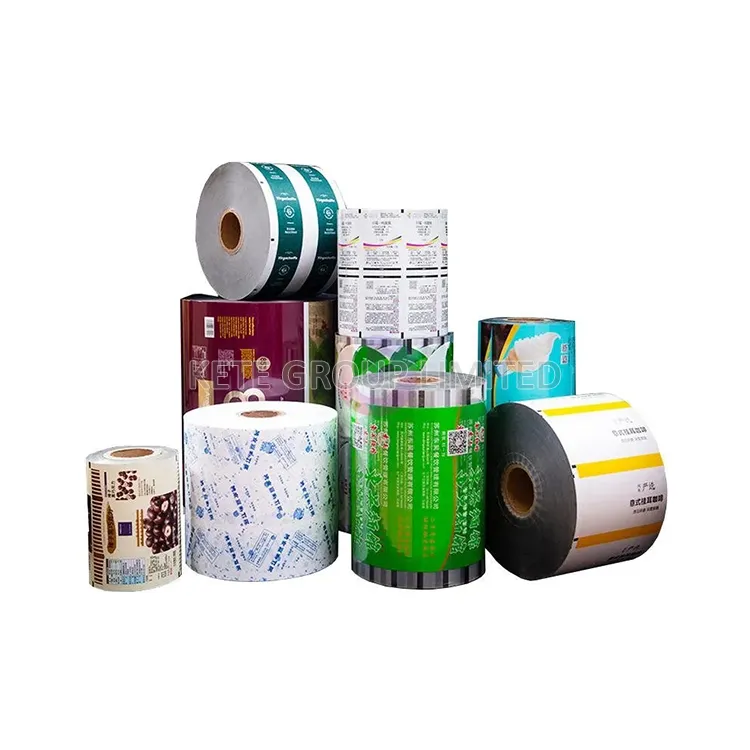

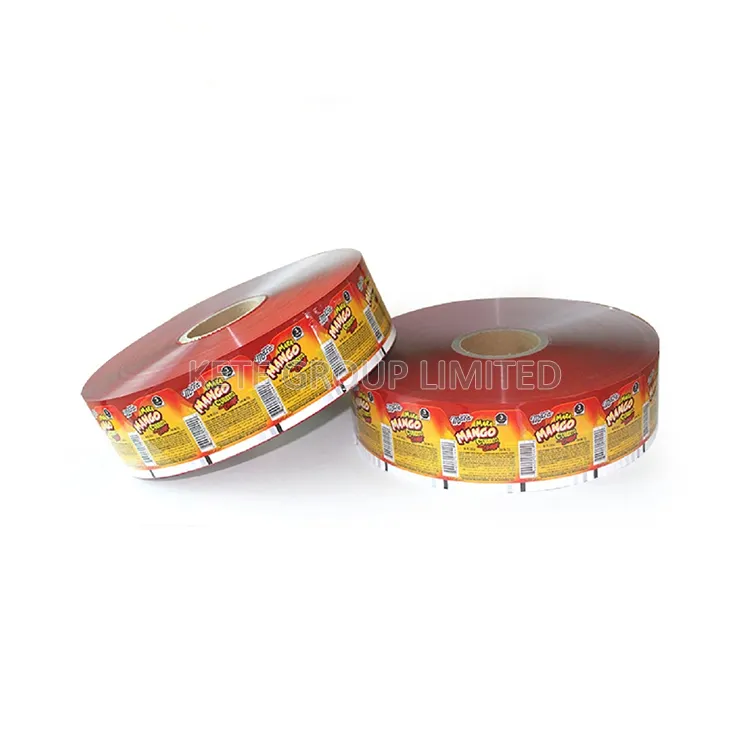

Machine Made Samples
This High Speed Slitting Machine Is Specially Designed For Slitting and Rewinding PVC /PET Film, Polyalm Material.
Let Our Experience Work For You
Machine Specifications
Model
KTSM-C300
Model
KTSM-C400
Raw Materials
Shrink PVC Film / PET-G Film/Polylaminate
Raw Materials
Shrink PVC Film / PET-G Film/Polylaminate
Raw Material Width
1000/1200mm (39.4″-47.2″)
Raw Material Width
1000/1200mm (39.4″-47.2″)
Max. Unwind Diameter
Φ600mm (23.6”)
Max. Unwind Diameter
Φ600mm (23.6”)
Max. Rewind Diameter
Φ450mm (17.7”)
Max. Rewind Diameter
Φ450mm (17.7”)
PVC /PET-G Film Thickness
60-75mic (2.36”-2.95”)
PVC /PET-G Film Thickness
60-75mic (2.36”-2.95”)
Polylaminate Material Thickness
100-120mic (3.94”-4.72”)
Polylaminate Material Thickness
100-120mic (3.94”-4.72”)
Slitting Techniques
Shear / Razor Blade
Slitting Techniques
Shear / Razor Blade
Max. Mechanical Speed
300m/min
Max. Mechanical Speed
400m/min
Explore Machine Workflow & Function Station
Our Machine is Designed with a Series of High-Precision Stations, Each Station Performing a Specific Function. Explore How Each Station Contributes to the Full Production Process.
From Raw Material Entry to Finished Product Delivery, Every Station is Designed to Work Seamlessly Together for Maximum Productivity and Smart Control.

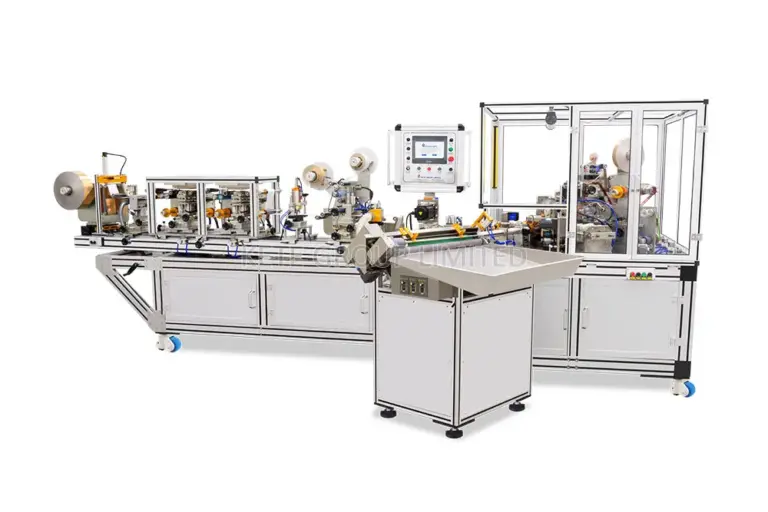

Wine Capsule Machine
Can Make PVC Capsules and Polylam Capsules
Unwind
With EPC System and Support Reverse Running
Perforation + C Punch
Make Perforation and C Punch on the Capsule Skirt for Easy Opening
Skirt Hot Stamp
Do Hot Stamp on the Capsule Skirt, Support 1 Color or 2 Colors
Tear Off Tape
Make Horizontal and Vertical Tear Off Tape on Skirt for Easy Opening
Touch Screen
Integrated Control of Machine, Including Functions, Parameters, Temperature, And Speed
Layout Drawing
Our Wine Capsule Machine Layout Size will be Different, Based on the Machine Functions of your Choice.
Download Our Latest Catalogue
Just Click Button Below to Download our PDF Catalogue
If You Want to Get More Details of KETE’s Wine Capsule Machines
and Their Data Sheet, Please Download Our Catalogue to Check,
and You Will Get Everything Clear.
Our Certificates
We Hold CE, RoHS, ISO, and Other Key Certifications to Ensure Our Machines Meet
Global Quality and Safety Standards.
Machine FAQ
Have Questions About Our Wine Capsule Machines? Find Quick Answers to The Most Common Topics, From Machine Features and Lead Times to Installation, Maintenance, Material, And Support. If You Don’t See Your Question Here, Feel Free To Contact us directly. We’re Happy to Help.
Related Machines & Equipment

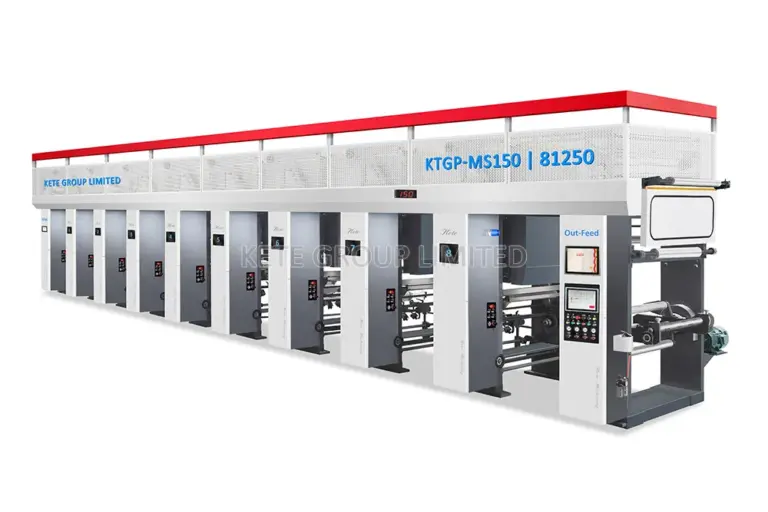

We Provide Not Only Core Wine Capsule Machines but Also Matching Support Equipment, Such As Rotogravure Printing Machines,Flexo Printing Machines, Slitting Machines,
