KETE MACHINE Your Make Packaging More Valuable
Customized Heat Shrink Capsule and Polylam Capsules Wine Capsule Machine Solutions
Making Heat Shrink PVC and PET Bottle Capsules & Polylam Bottle Capsules & Polynature Bottle Capsules

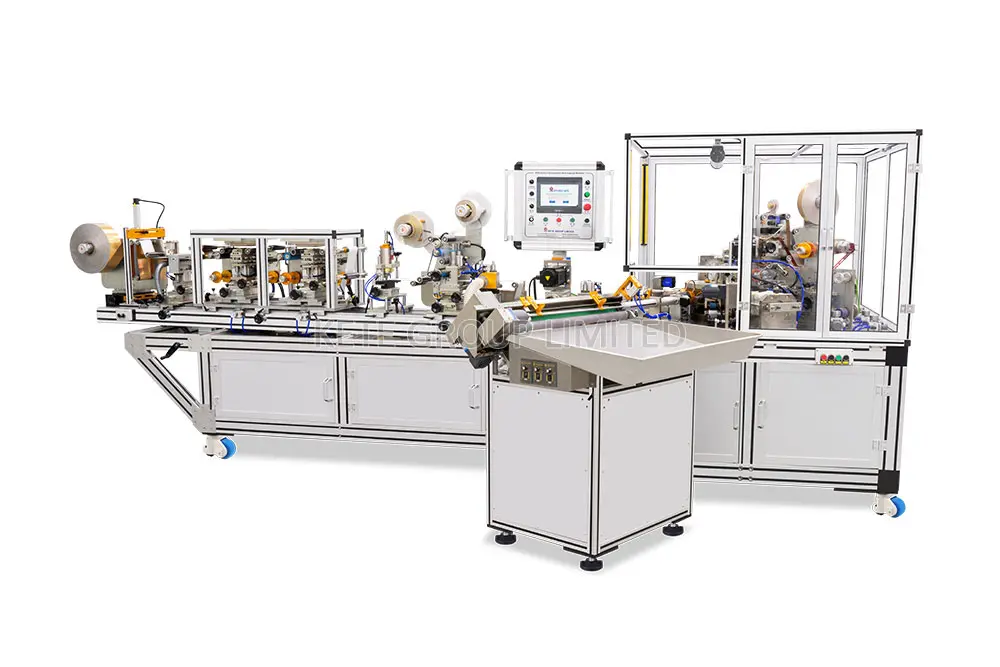

KTPC-C
120
pcs/min
Speed
28-36
mm
Diameter
12
pcs
Mandrel
KETE MACHINE Make Your Packaging More Valuable
Customized Heat Shrink Capsule and Polylam Capsules Wine Capsule Machine Solutions
We will Bring This Machine to Labelexpo Europe Exhibition for Show, and We Can Make Free Samples with Your Logo
Machine Video and Production Samples
This Wine Capsule Machine Video Shows a Polylam Capsules Running Test in Our Factory, Featuring Skirt Perforation, Skirt Hot Stamp,
Top Disc Hot Stamp, and More.

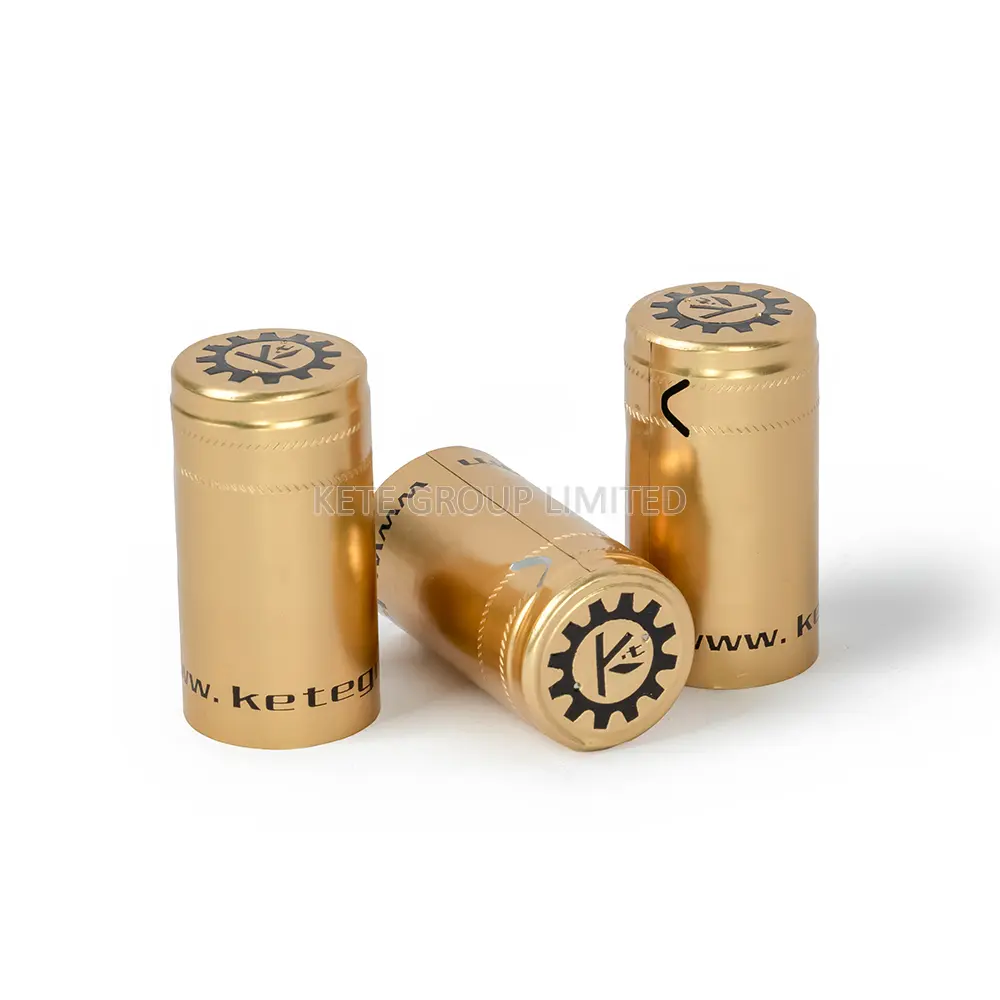

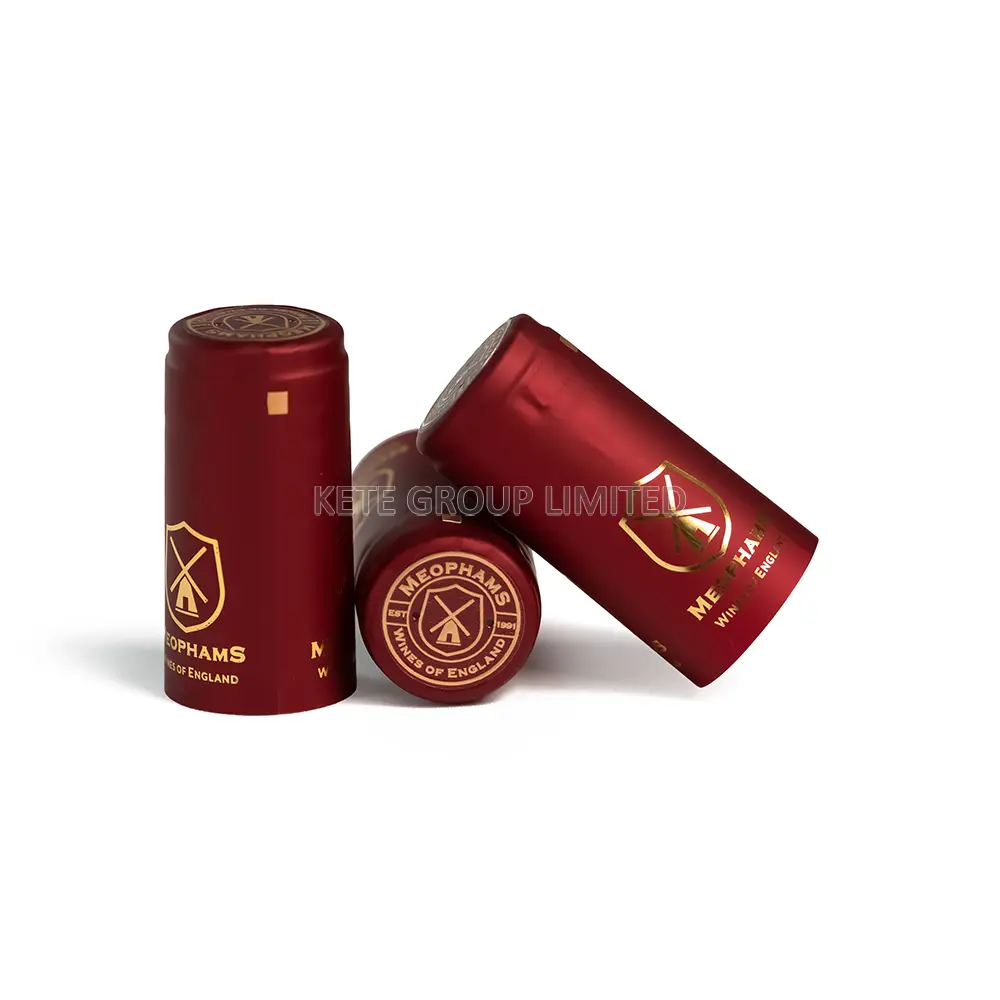

Polylam Capsules
Polylam Capsules
Polylam Capsules

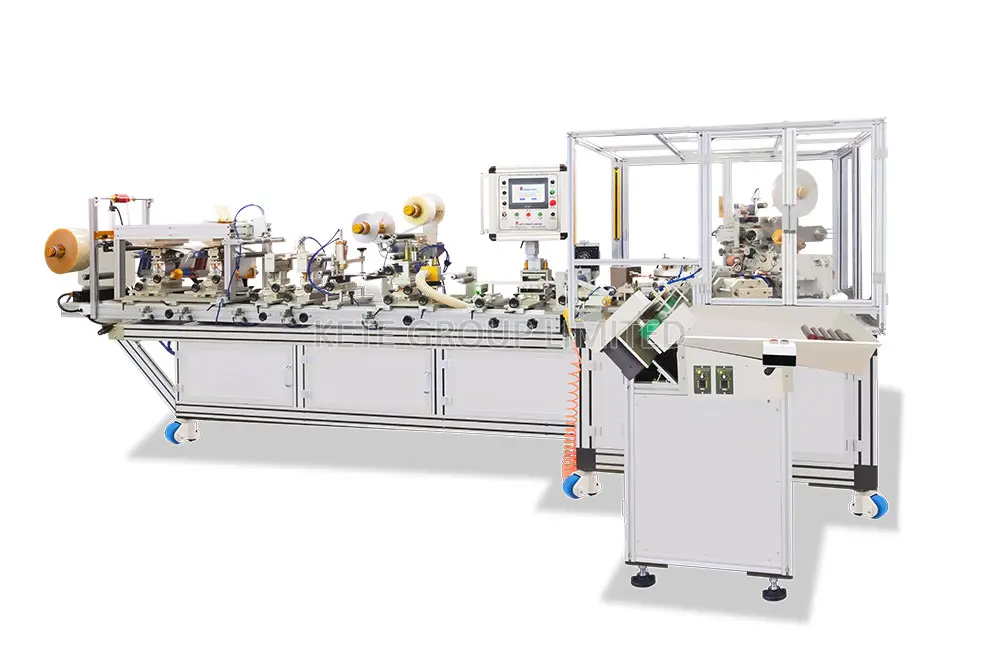

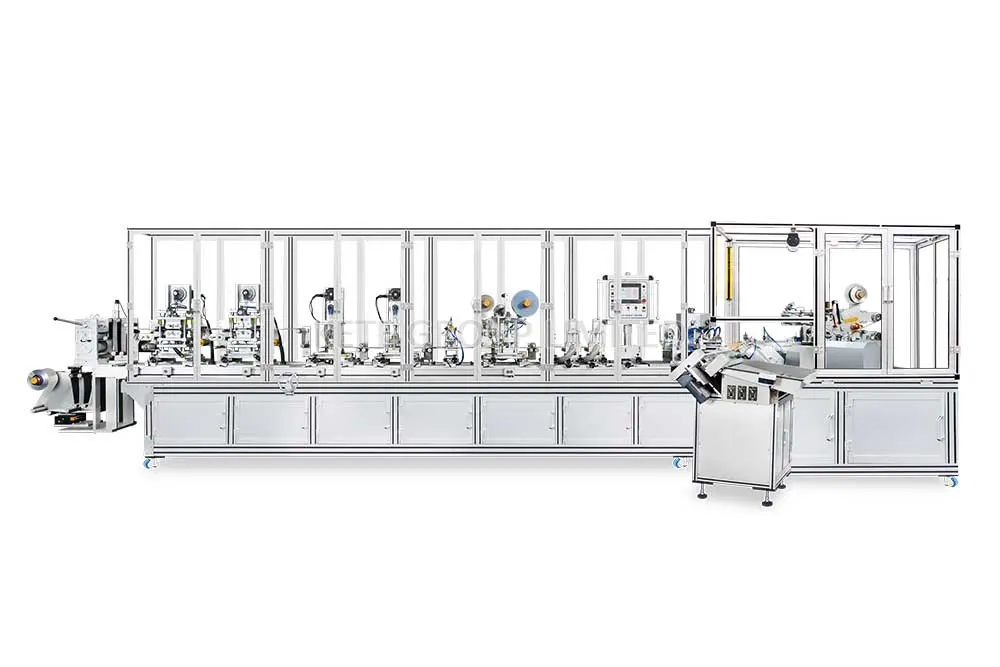

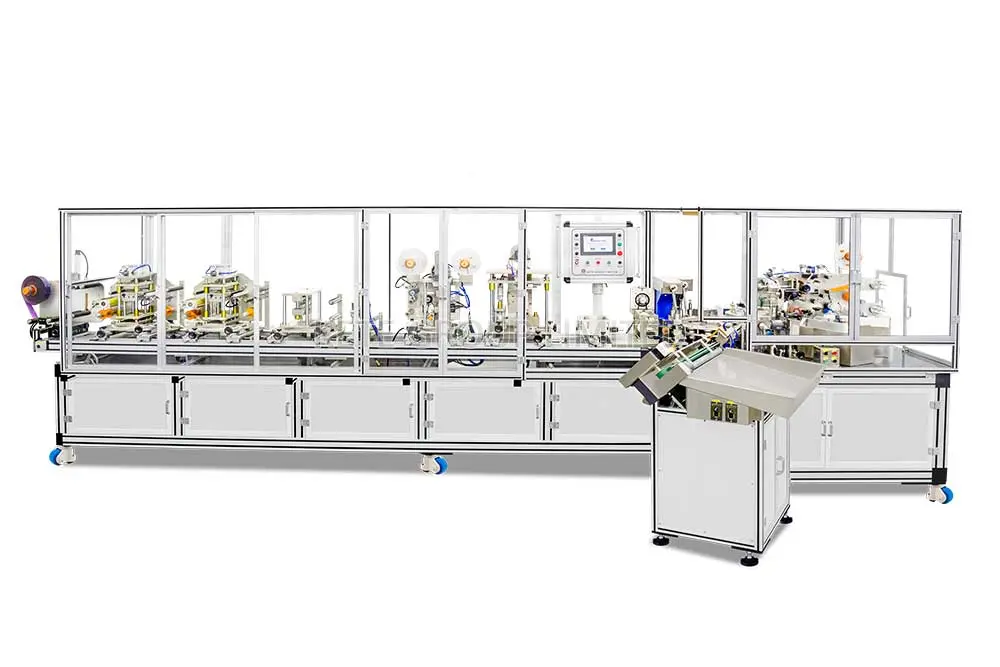

Related Wine Capsules Machine
Our Wine Capsule Machine Uses Heat Shrink Film And Complex-Foil to Make PVC Capsules, Polylam Capsules, and Sparkling Wine Capsules.
Support Functions of Skirt Hot Stamp, Perforation, Tear Off Tape, Top Disc Hot Stamp, Top Disc Emboss, Top Disc Printing etc.
- Use Heat Shrink Film
- Use Polylam Material
- Make PVC /PET Capsules
- Make Polylam Capsules
- Diameter: Φ28mm-Φ36mm
- Speed: 100-120capsules/min
- Use Heat Shrink Film
- Use Polylam Material
- Make PVC /PET Capsules
- Make Polylam Capsules
- Diameter: Φ30mm-Φ44mm
- Speed: 100-110capsules/min
- Use Heat Shrink Film
- Use Polylam Material
- Make PVC /PET Capsules
- Make Polylam Capsules
- Diameter: Φ30mm-Φ44mm
- Speed: 150-180capsules/min
- Use Heat Shrink Film
- Use Polylam Material
- Make PVC /PET Capsules
- Make Polylam Capsules
- Diameter: Φ33mm-Φ50mm
- Speed: 100-120capsules/min
Let Our Experience Work For You
Capsules Application
Our Wine Capsule Machine can Make Heat Shrink Capsules and Polylam Capsules Applicable for
Wine Bottles, Spirits Bottles, Olive Oil Bottles, 5-gallon Water Tanks, Gas Cylinders, etc.
Machine Made Samples

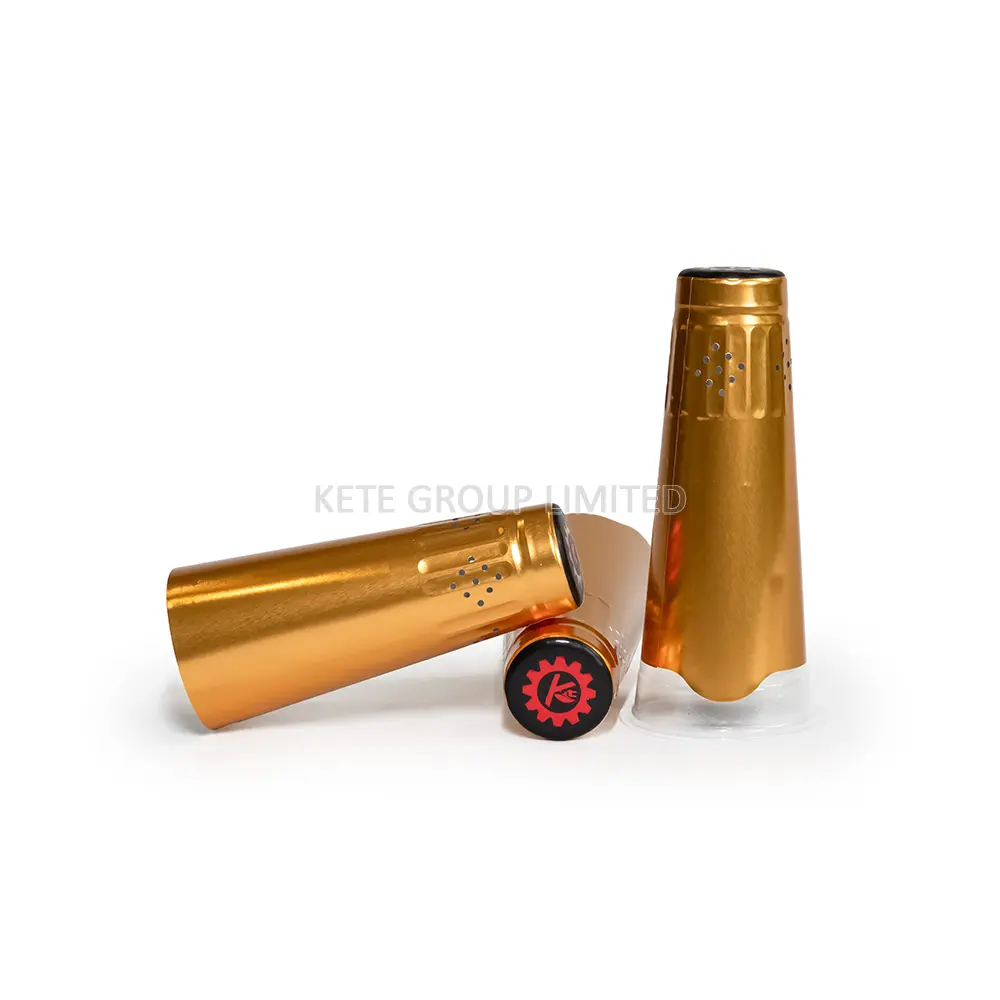

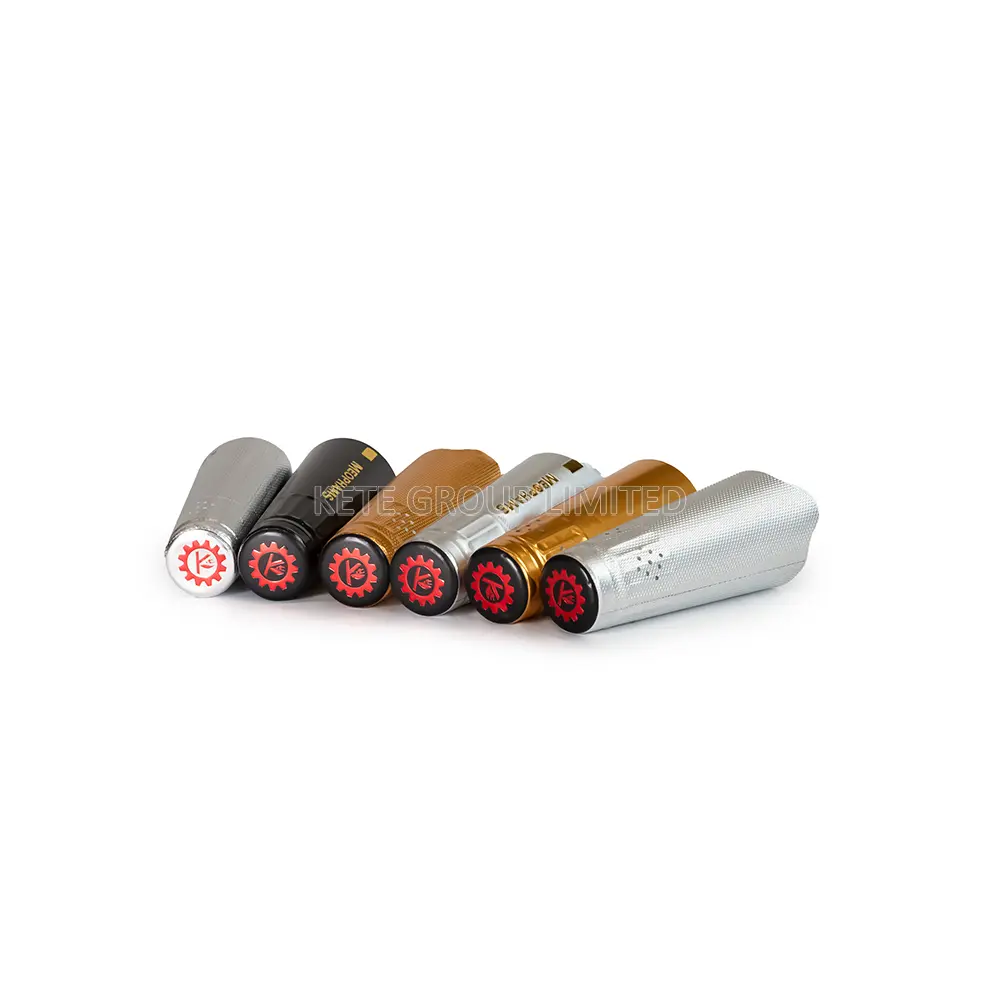

Our Wine Capsule Machine can Make Heat Shrink Pvc Capsules, PET Capsules, Polylam Capsules, Sparkling Wine Capsules, Champagne Capsules,
Gas Cylinder Capsules, 5-gallon Bottle Capsules, Olive Oil Botle Capsules, Candy Bottle Capsules, Clean Sealing Capsules etc.
Machine Specifications
Model
KTPC-C
Capsules Height
30-70mm (1.18”-2.76”)
Raw Materials
Shrink PVC Film / PET-G Film/Polylaminate
Max. Mechanical Speed
150Capsules/min
Mandrels
12
Max. Capsule Making Speed
100-120Capsules/min
Max. Unwind Diameter
Φ600mm (23.6”)
Capsules Taper
1.5°-2.5°
Max. Unwind Width
121mm (3.85”)
Paper Core Inner Diameter
Φ76mm (3”)
PVC /PET-G Film Thickness
60-75mic (2.36”-2.95”)
Total Power
15kw
Polylaminate Material Thickness
100-120mic (3.94”-4.72”)
Machine Weight
3000kg
Capsules Top Diameter
Φ28mm-Φ36mm (1.1”-1.42”)
Machine Size (LWH)
5600x2600x1800mm
Capsules Bottom Diameter
Φ29mm-Φ37mm (1.14”-1.46”)
Power Support
5 Lines 3 Phase 220/380/440V 50/60HZ
Explore Machine Workflow & Function Station
Our Machine is Designed with a Series of High-Precision Stations, Each Station Performing a Specific Function. Explore How Each Station Contributes to the Full Production Process.
From Raw Material Entry to Finished Product Delivery, Every Station is Designed to Work Seamlessly Together for Maximum Productivity and Smart Control.
Wine Capsule Machine
Can Make PVC Capsules and Polylam Capsules

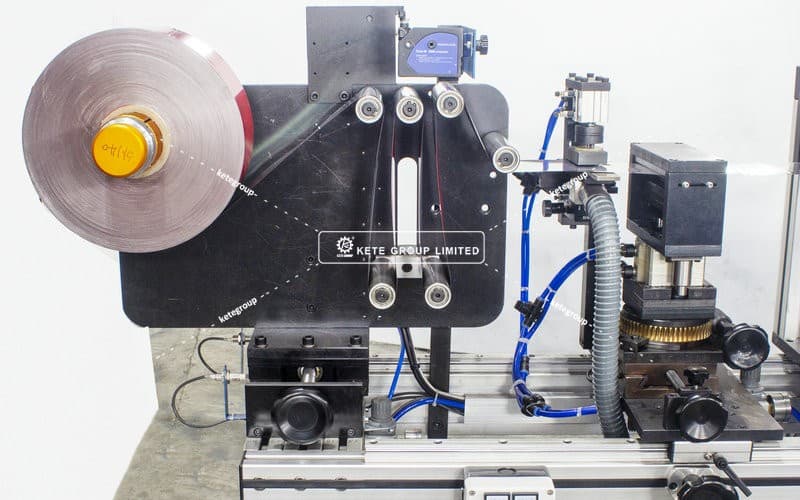

Unwind
With EPC System and Support Reverse Running

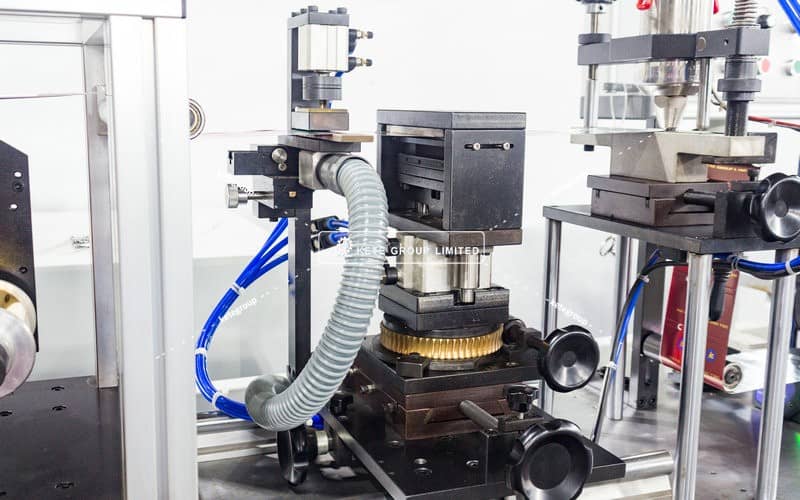

Perforation + C Punch
Make Perforation and C Punch on the Capsule Skirt for Easy Opening

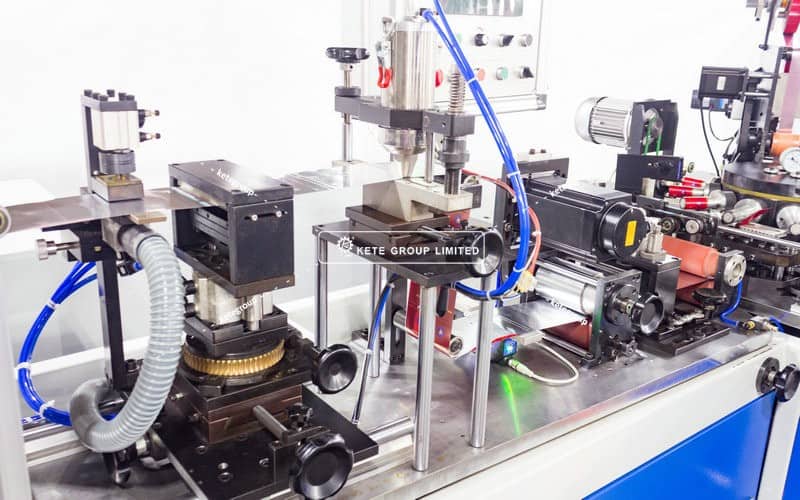

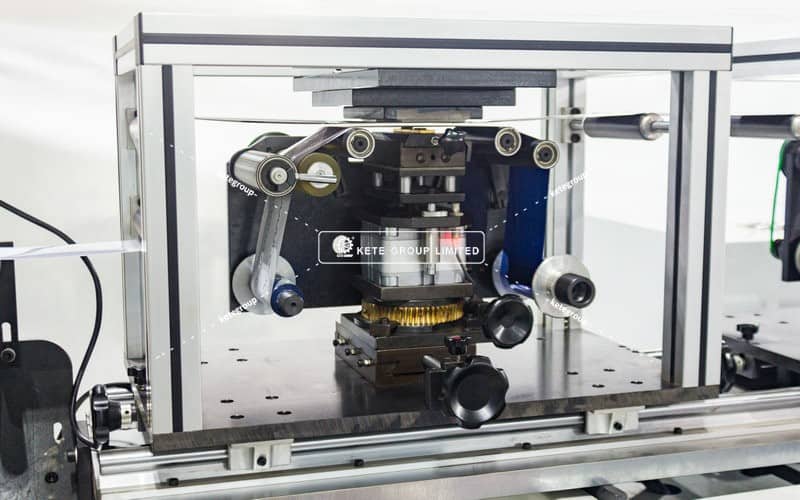

Skirt Hot Stamp
Do Hot Stamp on the Capsule Skirt, Support 1 Color or 2 Colors

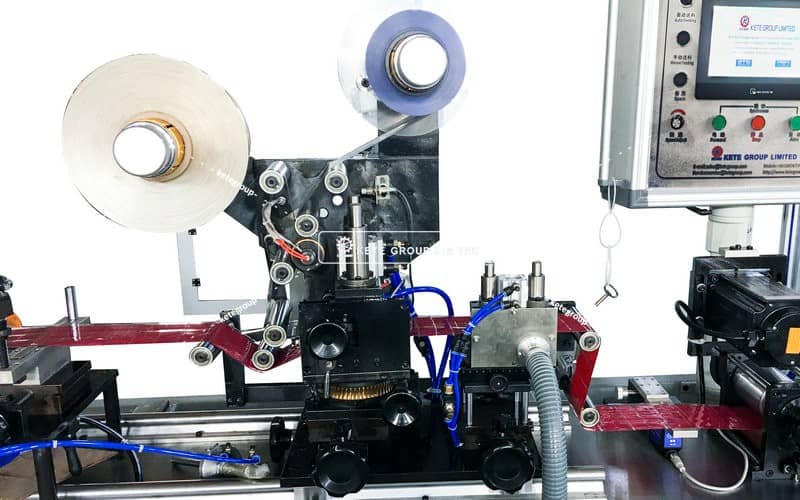

Tear Off Tape
Make Horizontal and Vertical Tear Off Tape on Skirt for Easy Opening
Touch Screen
Integrated Control of Machine, Including Functions, Parameters, Temperature, And Speed

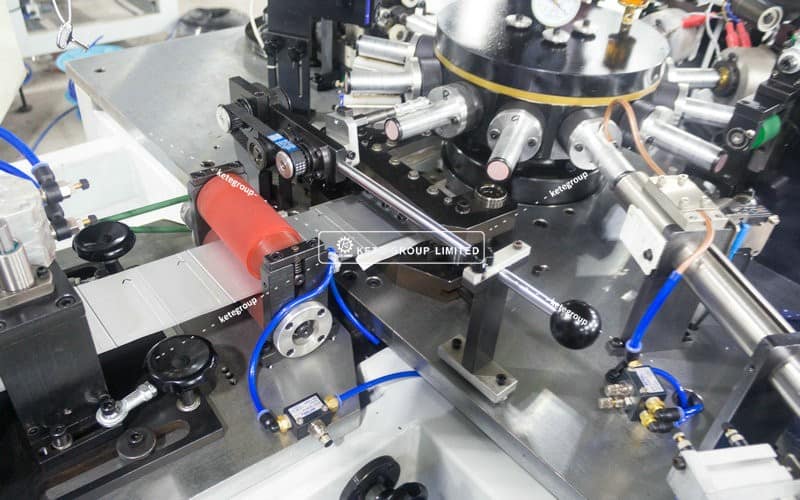

In-feed and Cutting
For PVC Capsules and Polylam Capsules will use Different Degree Cutting Knife

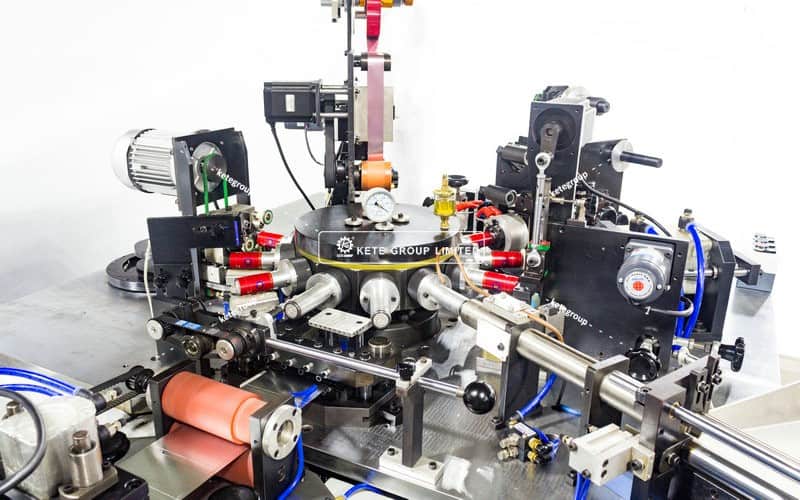

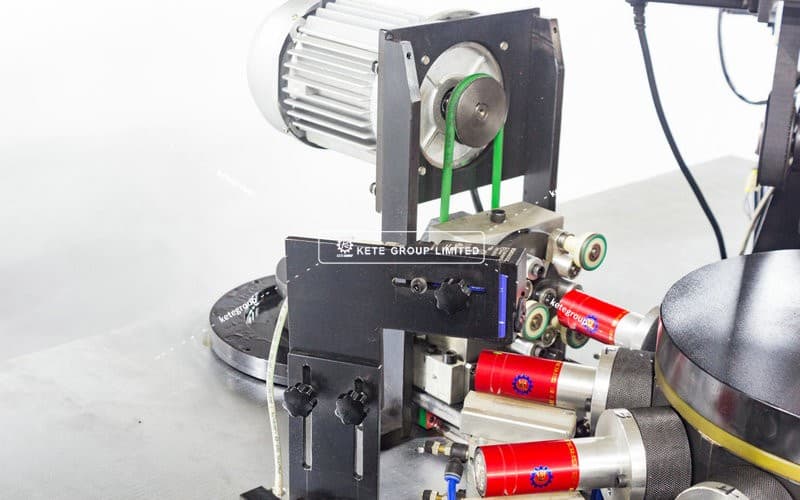

Forming
Our Machine Will Use 12 Mandrels for Forming Capsules,Different Sized Capsules Need to Change Mandrels

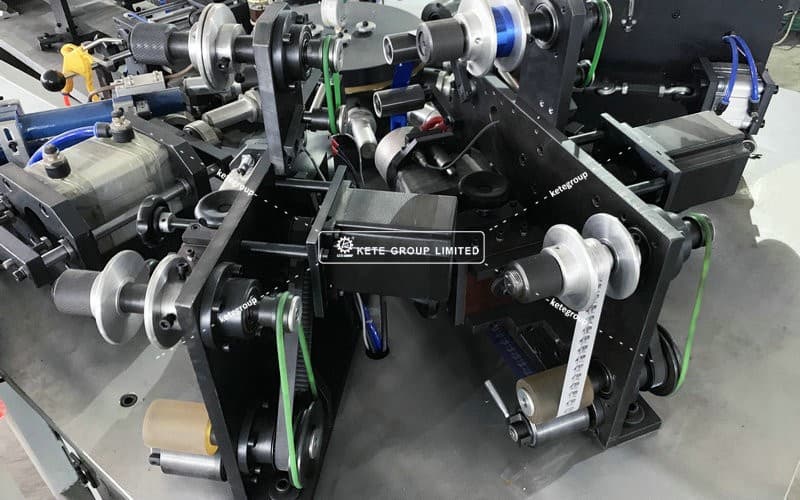

Top Disc Hot Stamp and Emboss
The Top Disc Supports 1 Color or 2 Color Hot Stamp.
Layout Drawing
Our Wine Capsule Machine Layout Size will be Different, Based on the Machine Functions of your Choice.
